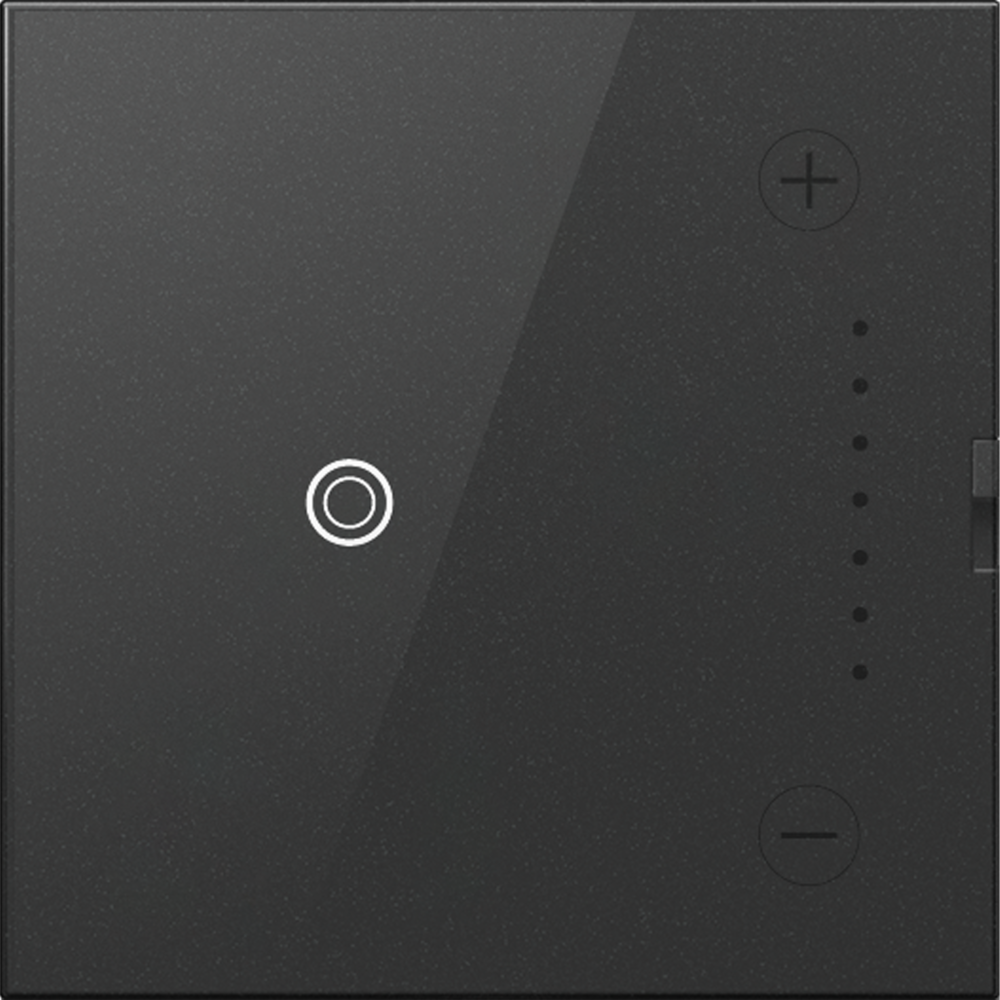

Legrand ADTH703TUG4 Adorne® Touch Tru-Universal Dimmer

Product Description

The LEGRAND ADTH703TUG4 is a dimmer switch from the adorne Collection, featuring a translucent, glass-like face. Operate with a simple touch on the center circle to turn lights on/off, or use the + or - on the side to dim. This Tru-Universal Dimmer self-calibrates to work with virtually any 120V dimmable bulb or fixture (excludes 0-10V).

• Helps fight the growth of stain and odor-causing bacteria through the invisible and continuous product protection of Microban® antimicrobial technology
• For complete installation, device must be paired with an adorne® screwless Wall Plate (not included). Available in a range of contemporary colors and stunning finishes.
• Installs in 15 minutes or less, fitting into an existing electrical box; neutral wire required.

Product Highlights

The dimmer is usable in both single-pole and 3-way applications and offers more color options to fit any style, including finishes to match current hardware and lighting trends.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: ADTH703TUG4
• Country of Origin: China

Technical Specifications

• Color: Graphite
• Material: Polycarbonate
• Finish: Metallic
• Application Sector: Commercial, Hospitality, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Features: Antimicrobial Protection, Auto-Calibration (Trim), High-End Trim (Dim Range), Locator Light, Low-End Trim (Dim Range)
• Number of Switches: 1
• Switch Type: Digital, Touch
• UPC Number: 785007233902
• Product Depth US: 1.29 in
• Product Height US: 2.48 in
• Product Width US: 1.77 in
• Requires Neutral Wire: Yes
• Wire Connection Type: Screw Terminals
• Dimming Compatibility: Forward or Reverse Selectable Phase
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Load Rating: 120V 4.5A 450W (CFL), 120V 4.5A 450W (LED), 120V 5.5A (EFL), 120V 500VA (MLV), 120V 700W (ELV), 120V 700W (Halogen), 120V 700W (Incandescent)
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED
• Mounting Type: Wall Box
• Number of Poles: Single Pole 3-Way
• Preset: Yes
• Voltage: 120 VAC
• Wire Size: #14 - #10 AWG
