Legrand AC300810 Pass & Seymour AC3008-10 Compression-Style Male F-Type Connector, 10-pack

Product Description

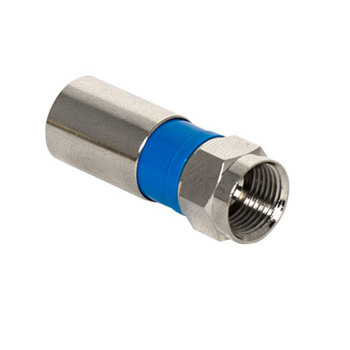

The Legrand AC300810 is a compression-style male F-type connector designed for use with RG6/U Quad Shield Coax cables. This product is essential for many satellite and cable TV service providers who require reliable and water-resistant connections.

• Water-resistant design ensures strong connections.
• Meets industry service provider requirements.

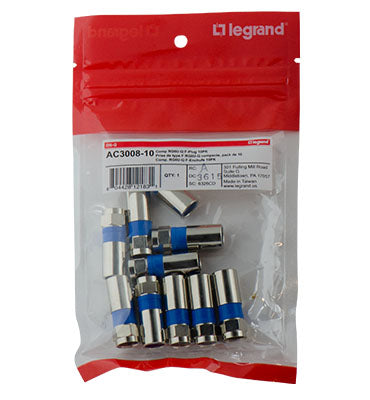

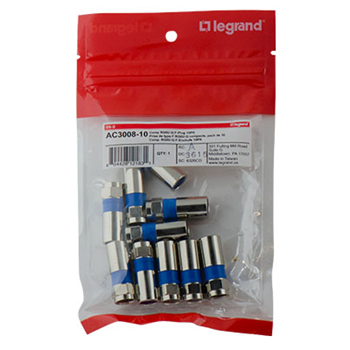

• Available in convenient 10-pack, suitable for residential applications.

Product Highlights

The AC300810 connector provides superior performance and durability. Ideal for residential settings, this connector meets strict specifications required by leading service providers.

Product Information

Standard Information

• Brand: Legrand
• Sub Brand: On-Q

Technical Specifications

• Type: Compression F-Type Connector for RG6/U Quad Shield cable
• Size: 0.433 H x 0.433 W x 1.22 D (11mm x 11mm x 31mm)
• Weight: 0.17 lb
• Voltage: 1500 Volt peak
• Amperage: Feed-through current: 10 Amp max
• Material: Brass
• Impedance: 75 Ohm
• Environmental Conditions: 0 to 93%
• Temperature Rating: 167°F
• Enclosure: Shell and nut are nickel-plated brass
