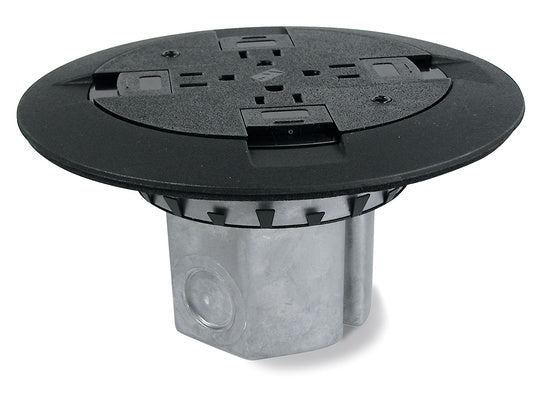

Legrand 861QTCBK Wiremold 4 18 In Black Wood/Raised Floor Box Assembly

Product Description

The Legrand 861QTCBK is a wiremold floor box assembly. This unit comes with a prewired fifteen amp quad receptacle, which can be wired as either standard or isolated ground. The flush poke-thru-style flanges offer versatility with a range of colors and finishes. Slide covers are designed to match the color of the painted flange. Aluminum and brass covers are supplied with black slide covers, while brass flanges can feature a nonmetallic brass-color slide holder. It is constructed from die-cast aluminum and provides three knockouts with a trade size of one half inch: two on the sides and one on the bottom. The box has a capacity of eighteen cubic inches, equivalent to two hundred ninety-five cubic centimeters. Installation requires a hole of four inches in diameter and a total floor depth of one inch. The assembly includes a scrub water gasket, making it suitable for installation on tile, wood, or carpet floors.

• Prewired fifteen amp quad receptacle available for standard or isolated ground wiring.
• Multiple color finishes for flush poke-thru-style flanges.
• Die-cast aluminum construction with three knockouts for easy installation.

Product Highlights

This product is ideal for efficient integration into flooring systems. Perfect for commercial applications where durable and versatile electrical access is required.

Product Information

Standard Information

• Catalog Number: 861QTCBK
• Manufacturer: Legrand-Wiremold

Technical Specifications

• Type: Floor Box
• Color: Black
• Amperage: 15 Amp
• Material: Aluminum
• Country of Origin: Mexico
• Number of Outlets: 4
• Certifications: CULUS, NAFTA, RoHS
• Product Series: 861
