Product Description

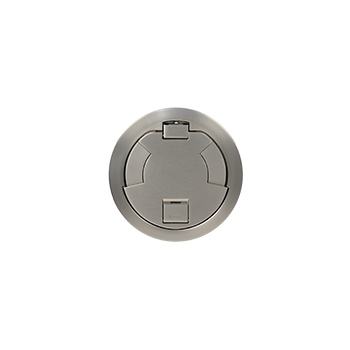

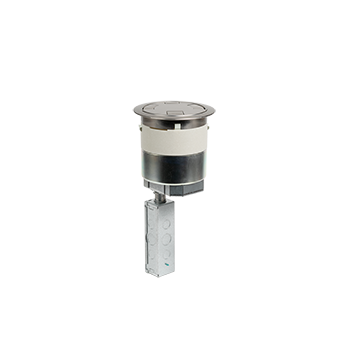

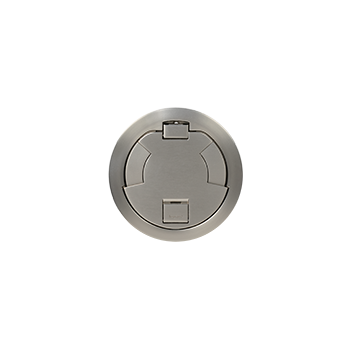

The LEGRAND 6ATC2PSN Evolution Series 6. Poke-Thru device is designed for retrofit and new construction, offering convenient access to power, communications, and audio/video services recessed below floor level. This device provides maximum protection with three gangs of capacity for service configuration. Its low-profile durable metal cover features sliding doors for neat cable egress, protecting cables and reducing tripping hazards. Ideal for commercial applications like meeting rooms, classrooms, and healthcare facilities.
- Meets and exceeds UL scrub water exclusion requirements for tile, carpet, and wood covered floors.
- RoHS Compliant for environmental standards.
- NAFTA Compliant for trade regulations.
Product Highlights
Recessed poke-thru device for power, communication, and A/V access with cable protection.
Product Information
Standard Information
-
Brand: LEGRAND
-
Manufacturer Part Number: 6ATC2PSN
-
Country of Origin: USA
Technical Specifications
-
Type: Poke-Thru
-
Material: Aluminum
-
Sub Brand: Wiremold
-
Cable Entry: Knockouts
-
Applications: Commercial Office, Education, Healthcare, Hospitality, Entertainment, Retail, Kiosks, Meeting Rooms, Training Rooms, Classrooms, Commercial Buildings with Open Space Architecture, Commercial Kitchen, Wet/Damp Locations
-
Construction: Assembled
-
Certifications: CULUS,NAFTA,ROHS
-
Number of Outlets: 2
-
Color: Satin Nickel
-
Cover Material: Die Cast Aluminum
-
Finish: Powder Coated
-
Hole Size: 6 in
-

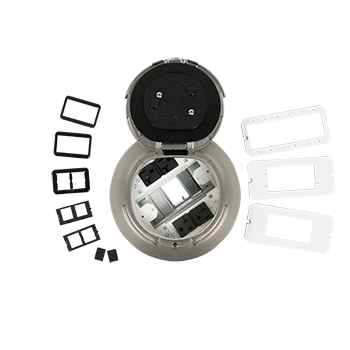

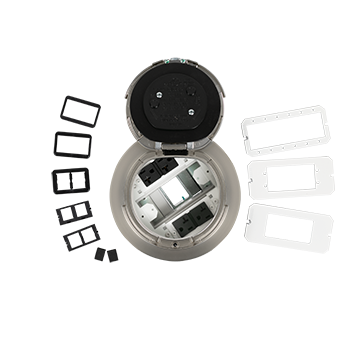

Includes: (2) Pre-Wired, Pre-Installed Proprietary 20 A Duplex Receptacle, (1) 6ACT8A, (1) 6TRAC, (1) 6SER Mounting Plate, (1) 5BLH 1/2-Gang Blank Housing, (1) 1PTHA 1-Gang Pass-Through Housing Assembly, (1) 575CHA 1/2-Gang 3/4 in Conduit Housing Assembly, Junction Box
-
Knockout Size: 3/4 in
-
Number of Gangs: 3
-
Series: Evolution™ 6AT
-
Suitable For Use With: Carpet, Tile, Wood, Terrazzo, Polished/Finished Concrete Floor
-
Number of Knockouts: 3
-
Cover Style: Surface
-
Cubic Capacity: 2578.88 in³
-
cULus Listed: Yes
-
RoHS Compliant: Yes
-
Service Capacity: Dual
-
Fire Rating: 2 hr
-
Is Pre-Wired: Yes
-
Sub-Category: Poke Through Assembled Unit
