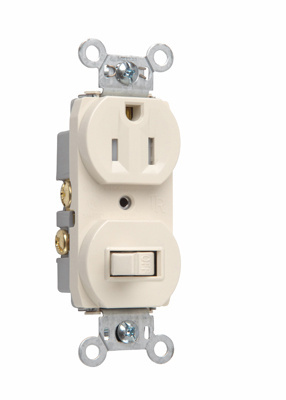

Legrand 691TRLA Pass & Seymour 15 Amp 120/125 VAC NEMA 5-15R Light Almond Combination Switch/Receptacle

Product Description

Legrand 691TRLA is a combination switch and receptacle with a rated current of fifteen amps and is designed for 120/125 VAC applications. This device allows for easy light control without the need for additional wall boxes. The tamper-resistant feature includes a dual mechanical shutter that helps prevent unwanted object insertion, enhancing safety in homes or commercial spaces.

• 15 Amp, 120/125 VAC rating
• Tamper-resistant design with dual mechanical shutter
• Fits two devices in the space of one

Product Highlights

This switch/receptacle combination is suitable for both residential and commercial use. It is easy to install and meets NEC requirements for safety.

Product Information

Standard Information

• Manufacturer: Pass & Seymour / Legrand
• Catalog Number: 691TRLA

Technical Specifications

• Dimensions: 1.32 inches L x 0.94 inches W x 4.06 inches H
• Color: Light Almond
• Material: Thermoplastic
• Number of Poles: 1
• Number of Wires: 3
• Voltage: 120 Volt
• Amperage: 15 Amp
• Connection Type: Side Wire
