Product Description

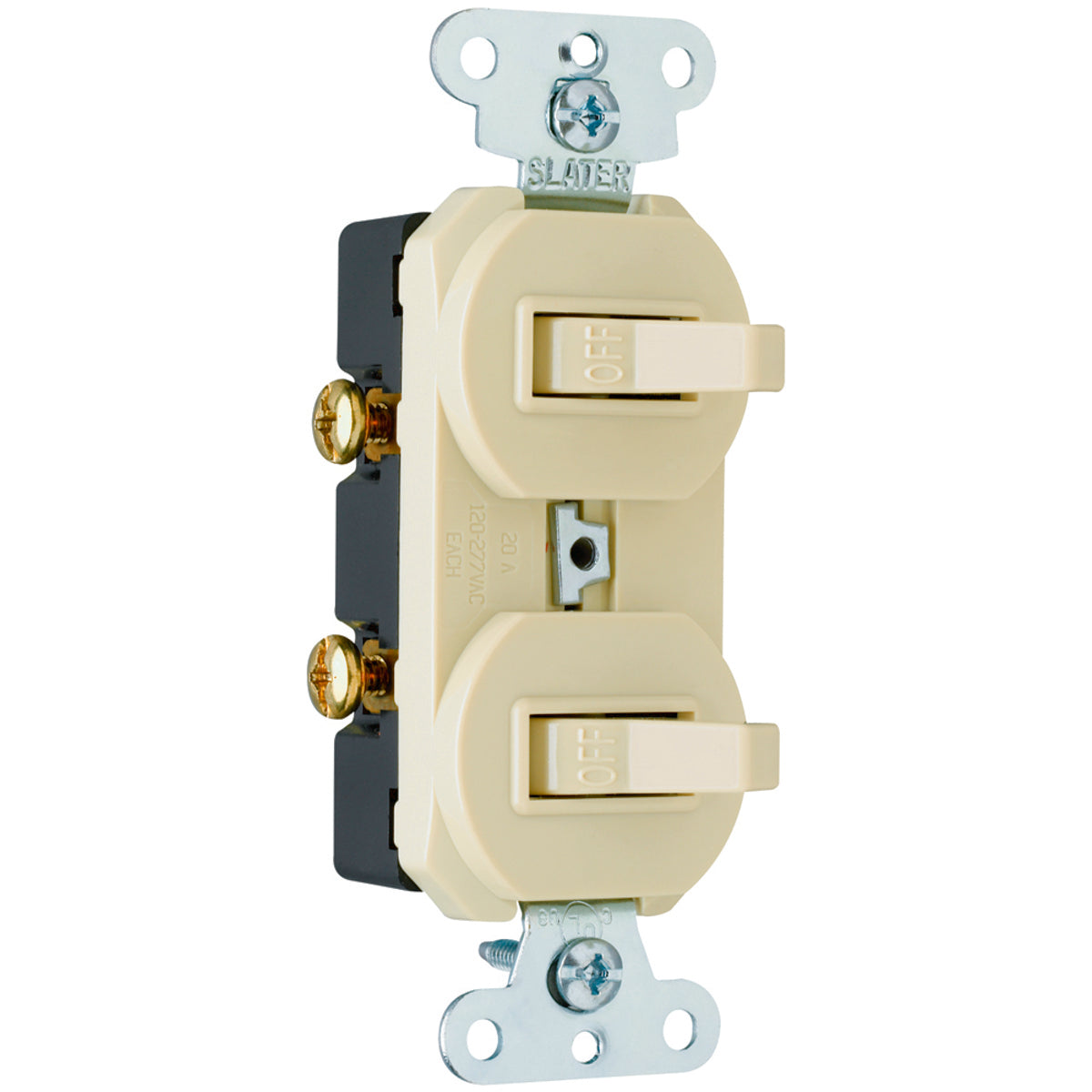

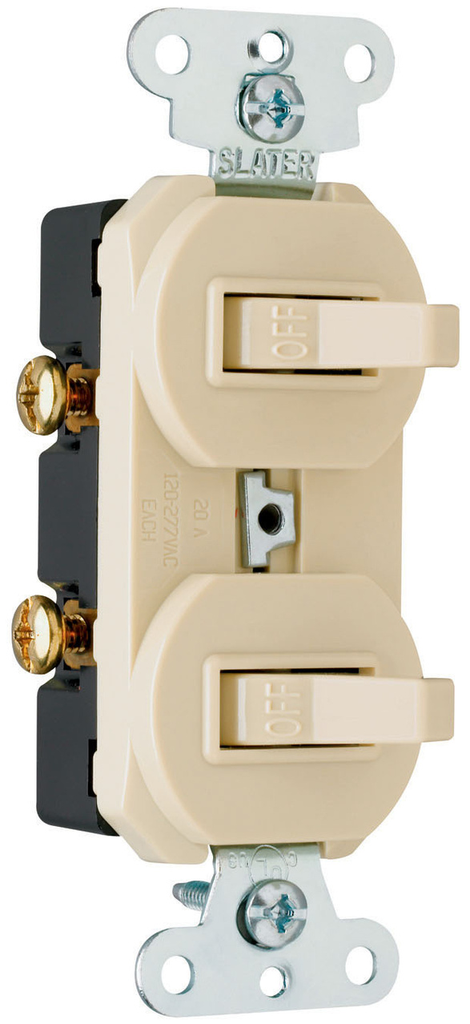

The Legrand 670IG is a single pole, double combination switch suitable for controlling two devices at once, rated at 20 amps and designed for 120/277 volts. This switch combines functionality and versatility within one device. It is made by Pass & Seymour, a trusted brand in wiring devices.
- Easily accessible break-off for separate or common feed
- Long-life neon lamp in pilot light rated 1/25 Watt, 125V
- Compatible with side wire 12 and 14 AWG
Product Highlights
Ideal for residential and commercial applications, the Legrand 670IG meets NEC requirements for grounding combination devices.
Product Information
Standard Information
-
Brand: Legrand
-
MPN: 670IG
Technical Specifications
-
Catalog Number: 670IG
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 20 Amp
-
Operating Cycles: 30000
-
Size: 1.32 L x 0.94 W x 4.06 H inches
-
Connection Type: Side wire
-
Number of Poles: 1
-
Environmental Conditions: -30 to 60 Degrees Celsius
