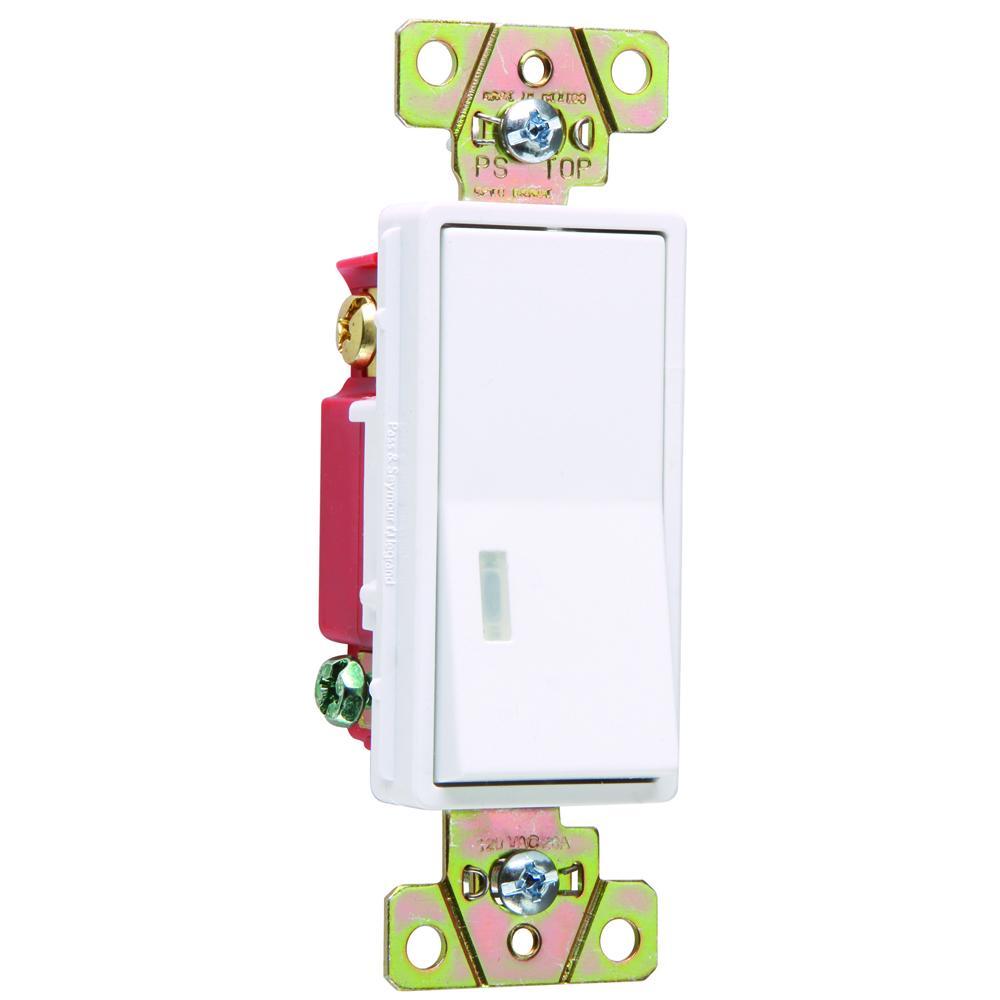

Legrand 2626-W 3-Way Illuminated Decorator Switch 3 W (1 Pack) 2626W

Product Description

Legrand 2626-W is a specification-grade 3-way illuminated decorator paddle switch rated 20 A at 120 VAC with a 3 W illumination rating. It mounts in a standard wall box and supports back and side threaded wiring for 14–10 AWG conductors. The switch uses a cushioned paddle actuator, impact-resistant polycarbonate construction, silver alloy contacts, integral auto-ground clip, tri-drive screws, and a 50,000-cycle mechanical life with operating range −40 to 60°C.

• Electrical: 20 A, 120 VAC rating; 3 W illumination; contact rating 20 A at 120 VAC.
• Wiring: Back and side threaded/screw-pressure-plate terminals accepting 14–10 AWG (stranded or solid).
• Construction: Impact-resistant polycarbonate body, cushioned thermoplastic paddle, silver alloy contacts, integral auto-ground clip, tri-drive screws; 50,000 operating cycles.

Product Highlights

Specification-grade 3-way illuminated decorator paddle switch for wall mounting with back/side wiring and compatibility with CFL, fluorescent, halogen, incandescent, LED, universal, and xenon loads.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 2626-W
• Country of Origin: Mexico

Technical Specifications

• Brand: Pass & Seymour
• Manufacturer: Legrand
• Manufacturer Part Number: 2626-W
• MPN: 2626-W
• Alternate MPN: 2626W
• FEPN: 2626-W PS
• UPC: 785007539851
• Type: 3-Way Illuminated
• Function: 3-way, Illuminated
• Input Voltage: 120 VAC
• Amperage Rating: 20 A
• Power Rating: 3 W (illumination)
• Contact Rating: 20 A at 120 VAC
• Number of Poles: 1
• Number of Switches: 1
• Actuator: Paddle
• Switch Style: Decorator / Paddle
• Material: Impact-resistant polycarbonate (body), thermoplastic (paddle)
• Mounting Type: Wall / Wall Box
• Terminal Type: Back/Side Wire, Threaded, Screw-pressure-plate
• Wire Range: #14 - #10 AWG (stranded or solid copper/copper clad)
• Operating Cycles: 50,000 Cycles
• Operating Temperature: -40 to 60 deg C
• Dimensions: 4.2 in H x 1.3 in W x 1.06 in D
• Height: 4.2 in
• Width: 1.3 in
• Depth: 1.06 in
• Finish: Matte
• Load Types: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Standards / Certifications: cULus, CSA, UL
• Country of Origin: Mexico
• Application: Industrial
