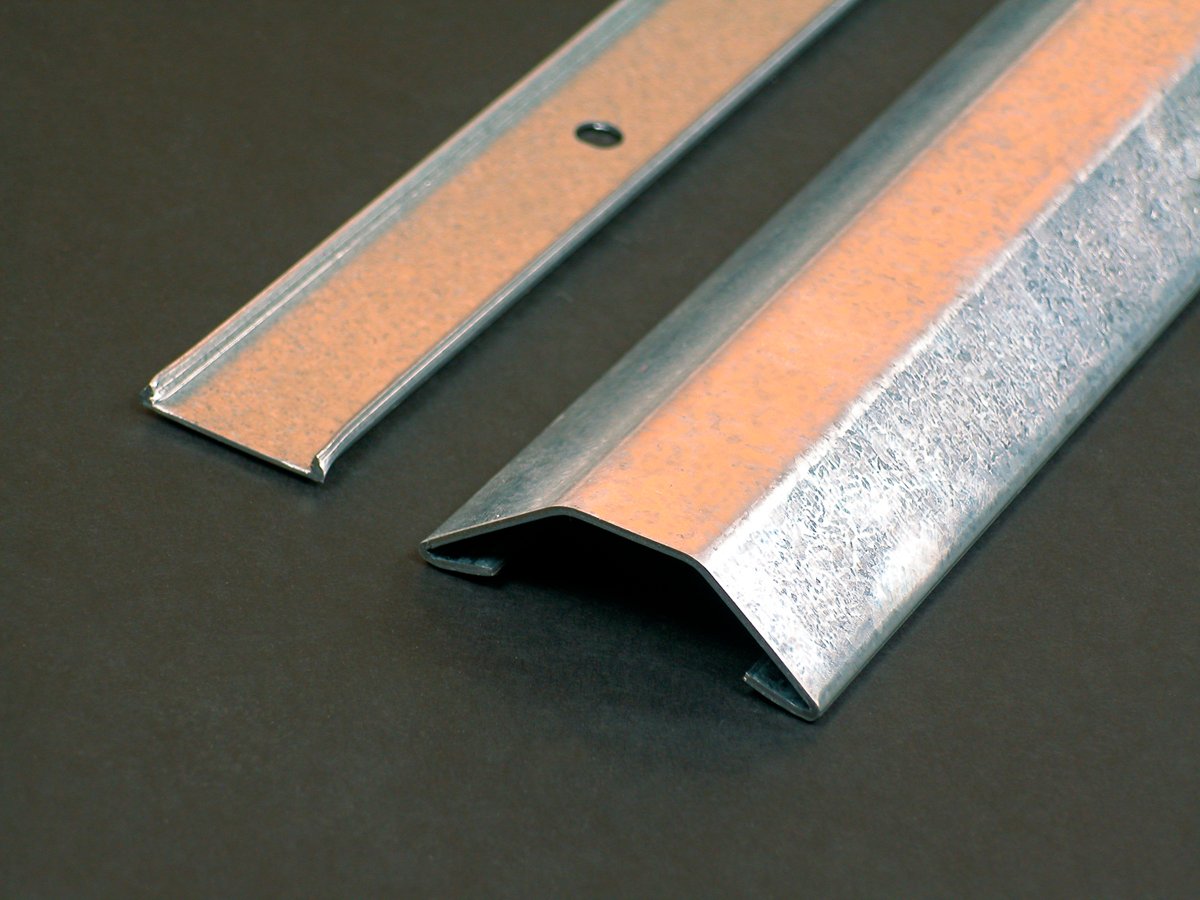

Legrand 2600-10 Raceway Base and Cover 10 Foot (5 per Carton)

Product Description

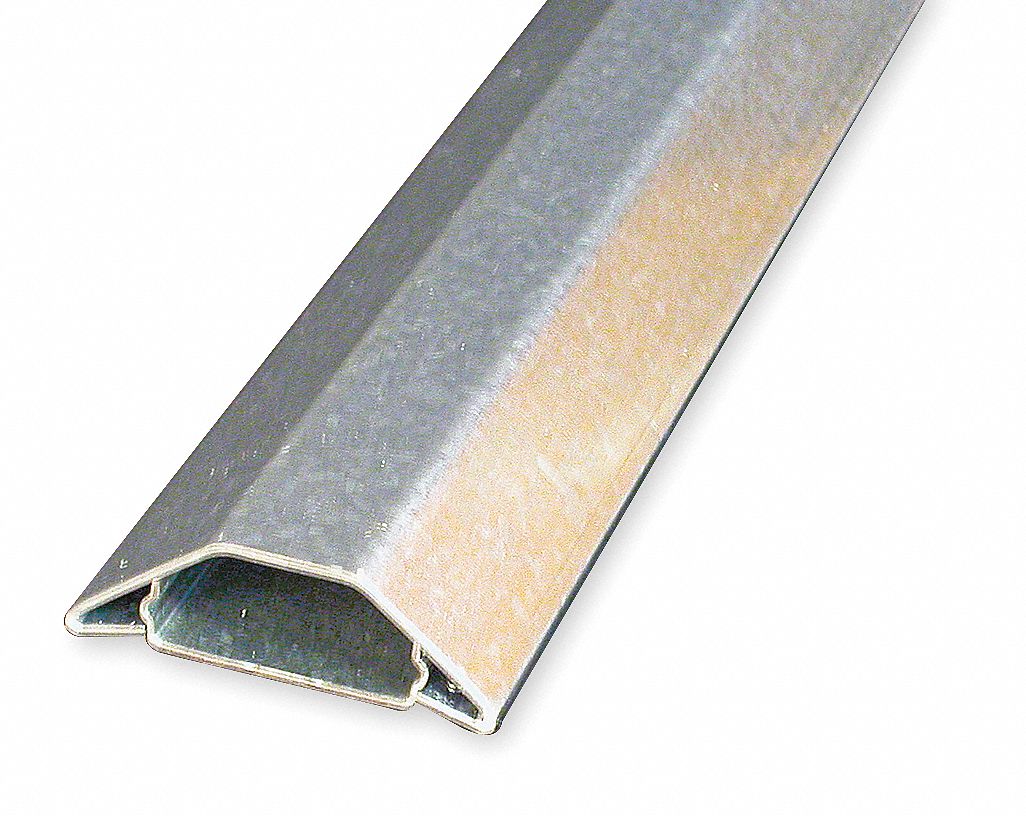

Legrand 2600-10 is a 1-channel raceway base and cover assembly designed for surface or overfloor cable routing in commercial and residential settings. Constructed of galvanized steel with a snap-on cover, the 10 foot section provides a low-profile channel for power and communication cabling. The assembly is RoHS compliant and rated to 600 VAC, with mounting holes provided for screw installation and paintable finish for decor matching.

• Steel construction with galvanized finish; 10 ft length.
• Snap-on cover design with 9/32 in diameter mounting holes on approximately 8 in centers; low-profile dimensions ~2.22 in W x 0.72 in H.
• Rated to 600 VAC; standards include RoHS compliance and cULus listings; packaged five 10 ft sections per carton.

Product Highlights

1-channel, 10 ft galvanized steel raceway base and snap-on cover; 9/32 in mounting holes; 600 V rating; RoHS compliant; packed 5 per carton.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 2600-10
• Country of Origin: USA

Technical Specifications

• Manufacturer: Legrand
• Brand: LEGRAND
• Manufacturer Part Number: 2600-10
• Series: 2600
• Product Type: Raceway base and cover / Overfloor raceway
• Number of Channels: 1
• Length: 10 ft (120 in)
• Material: Steel (galvanized)
• Finish: Galvanized
• Mounting Hole Diameter: 9/32 in
• Mounting Type: Snap-on
• Voltage Rating: 600 VAC

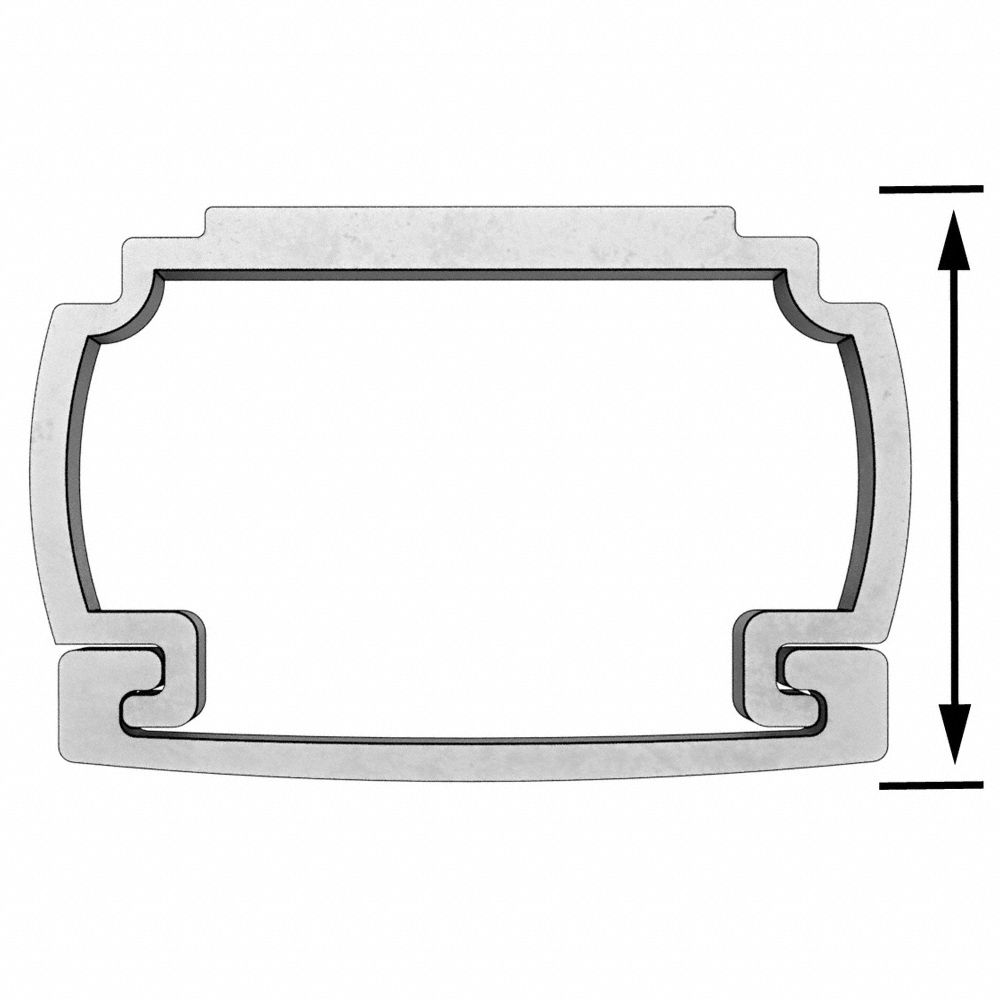

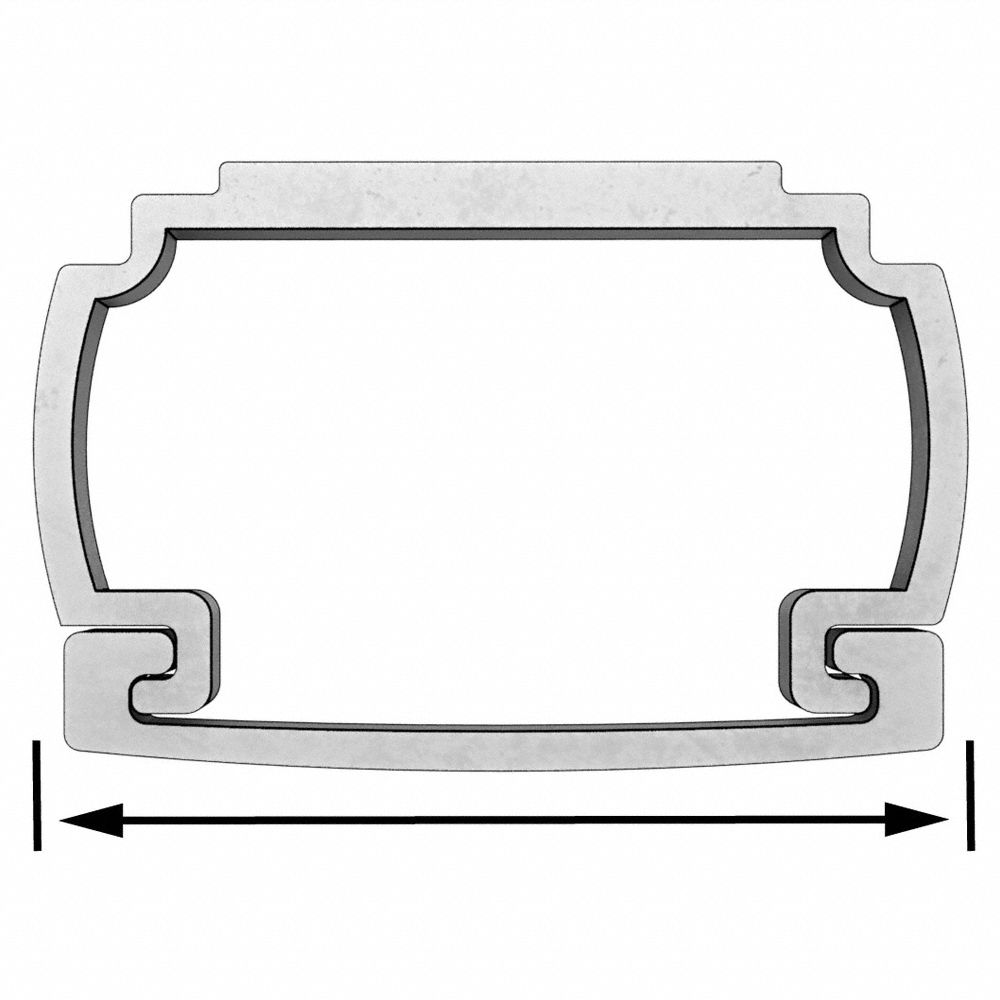

• Dimensions (W x H): Approximately 2.22 in x 0.72 in
• Application: Commercial, office and residential surface/overfloor cable routing
• Standards/Approvals: RoHS compliant; cULus listed (E4376/E41751); meets Article 386 of NEC and Section 12-1600 of CEC
• Standard Package: 5 per carton
• Country of Origin: United States
• UPC: 786776080230
• Weight (per 10 ft section): Approximately 0.844 lb
