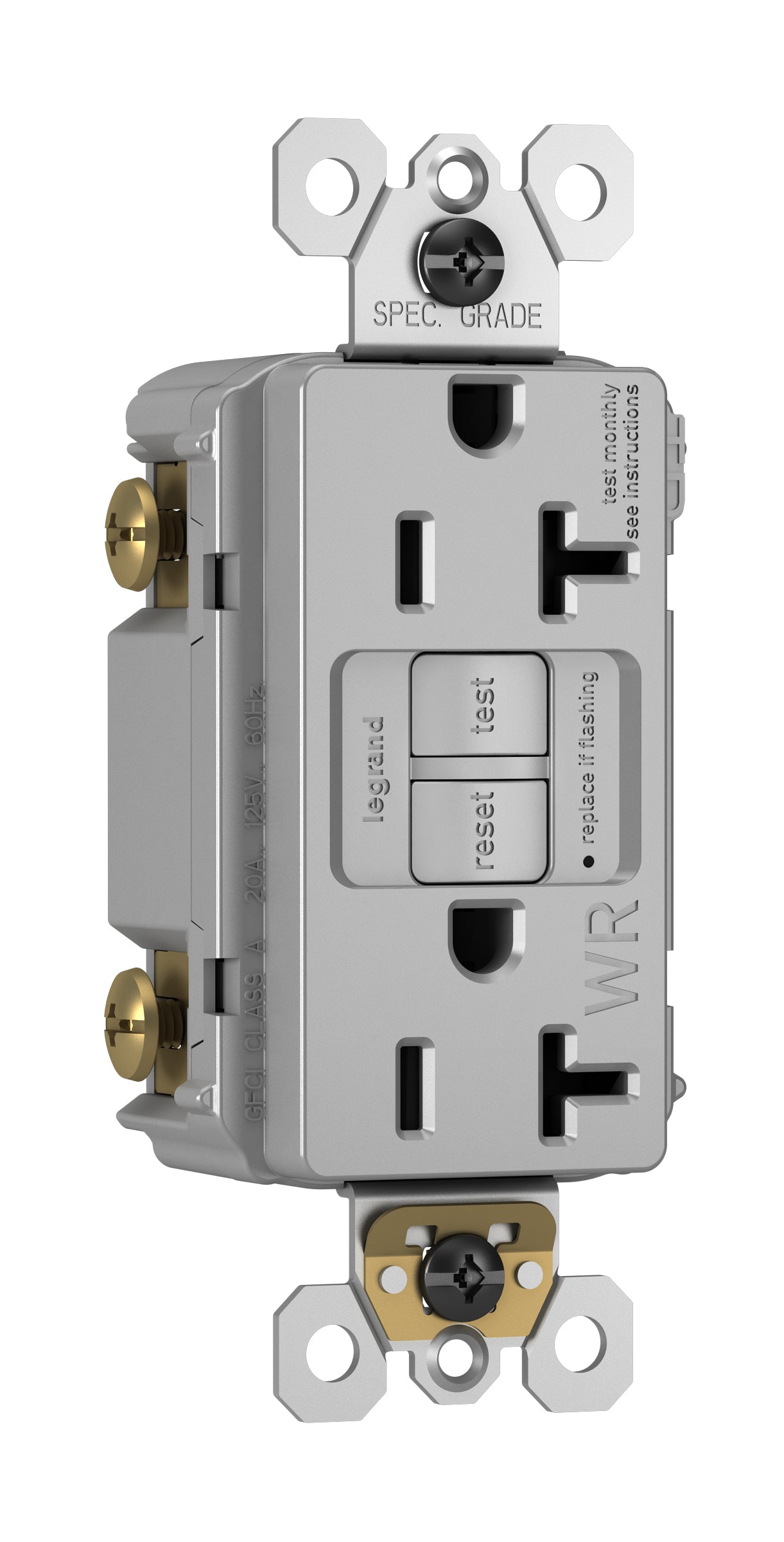

Legrand 2097TRWRGRY P&S Self-Test GFCI Recep TR WR 20A 125V

Product Description

The LEGRAND 2097TRWRGRY is a Pass & Seymour® Radiant® GFCI Receptacle. This duplex self-test tamper/weather-resistant receptacle is rated for 125 VAC and 20 A with a frequency of 60 Hz. It is suitable for commercial, residential, industrial, healthcare, education, and retail applications.

• Side or internal screw pressure plate back wire with 14 to 10 AWG solid or stranded copper wire
• Conducts an automatic test every three sec, ensuring it's always ready to protect, if the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
• Thinner than competitor's GFCI receptacle, leaves more room for wires in the box

Product Highlights

The receptacle features a high impact-resistant thermoplastic construction and a patented shutter system to help prevent the insertion of foreign objects.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 2097TRWRGRY

Technical Specifications

• Amperage Rating: 20 A
• Application: Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
• Color: Gray
• Frequency Rating: 60 Hz
• Grade: Specification
• Manufacturer Part Number: 2097TRWRGRY
• Material: Nylon/Thermoplastic
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Series: 2097TRW
• Standards/Approvals: cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|NEC Certified|UL 498/943|UL 94 V-2 Flammability Rated
• Temperature Rating: -35 to 66 deg C
• Terminal Type: Back/Side Wire/Screw
• Type: Duplex Self-Test Tamper/Weather-Resistant
• Voltage Rating: 125 VAC
