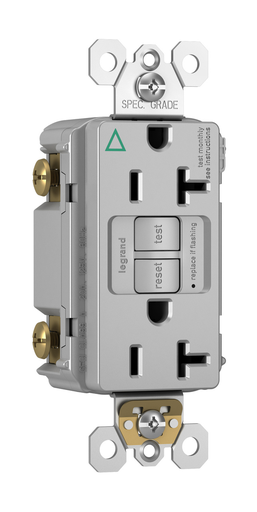

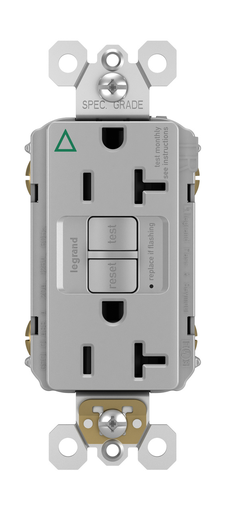

Legrand 2097IGTRGRY 20A 125V Self Test Tamper Resistant Isolated Ground GFCI Gray

Product Description

The Legrand 2097IGTRGRY is a twenty amp, one hundred twenty-five volt self-test tamper resistant isolated ground GFCI. It is designed for use in both commercial and residential applications.

• Automatic self-testing every three seconds
• SafeLock protection disconnects power if critical components are damaged
• Back and side wire connection options

Product Highlights

This GFCI has a built-in mechanism that conducts tests to ensure operational readiness. It indicates failure through a light signal.

Product Information

Standard Information

• Brand: Legrand-Pass & Seymour
• Country of Origin: China

Technical Specifications

• Catalog Number: 2097IGTRGRY
• Amperage Rating: 20 Amp
• Voltage Rating: 125 Volt
• Number of Poles: 2
• Frequency Rating: 60 Hz
• Material: Thermoplastic
• Operating Temperature: -35 Degrees C to +66 Degrees C
• Environmental Conditions: 95% Humidity, UL 94 V2
• Trip Range: 4 to 6 mA
• Trip Type: .025 Second Nominal
• Standards: cULus, UL Listed
