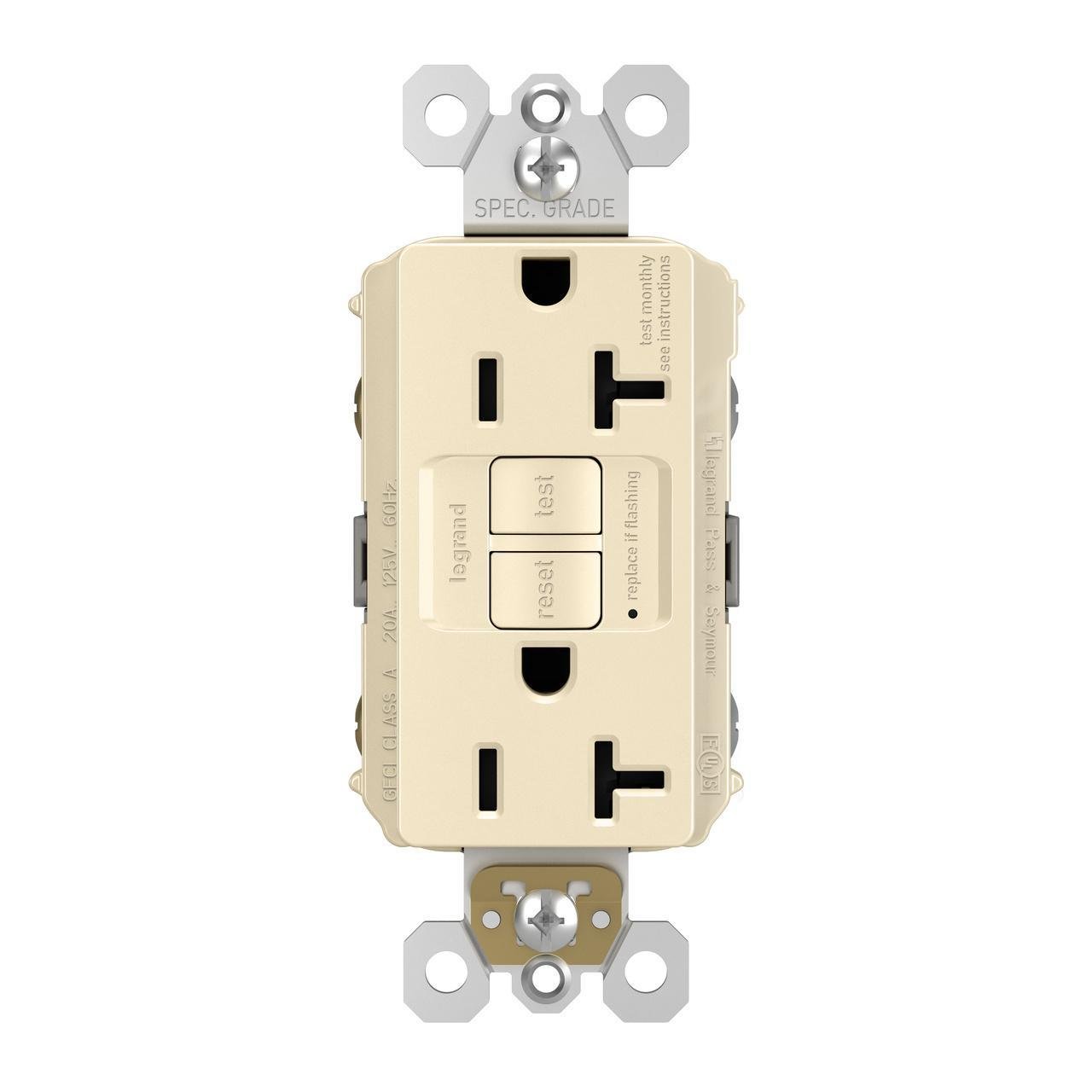

Legrand 2097-LA Radiant® 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection

Product Description

The LEGRAND 2097-LA Radiant® GFCI receptacles self-test automatically every three seconds, ensuring reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection. 20A outlets are ideal for use with larger appliances and commercial installations. GFCI protection is required by code in bathrooms, kitchens, garages, basements, and outdoor areas.

• Protects against shock caused by ground-fault occurrences.
• Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced
• Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected

Product Highlights

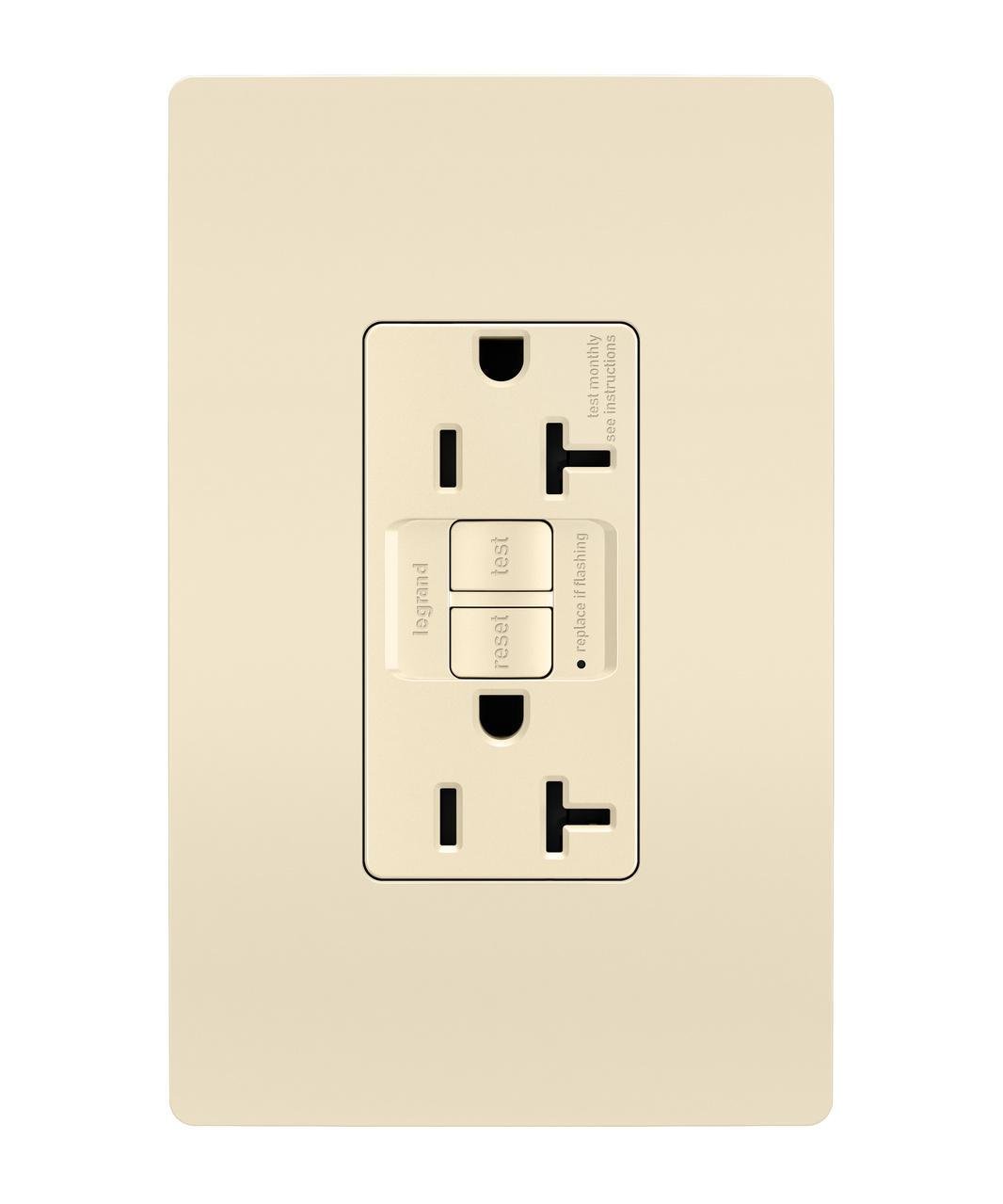

The GFCI receptacles make it easier to recognize and fix trips with a reset button right on the device. Features durable, high-impact resistant thermoplastic construction. Complete the look with a sleek, screwless radiant® Wall Plate.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 2097-LA
• Country of Origin: China

Technical Specifications

• Color: Light Almond
• Finish: Matte
• Application Sector: Commercial, Multi-Dwelling Unit, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Self-Test: Yes
• Wall Plate Included: Yes
• Number of Receptacles: 2
• Outlet Type: GFCI
• Standard: cULus, UL Listed, FSUL
• UPC Number: 785007036480
• Product Depth US: 1.03 in
• Product Height US: 4.2 in
• Product Width US: 1.73 in
• cULus ListingNumber: E42190
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 20 A

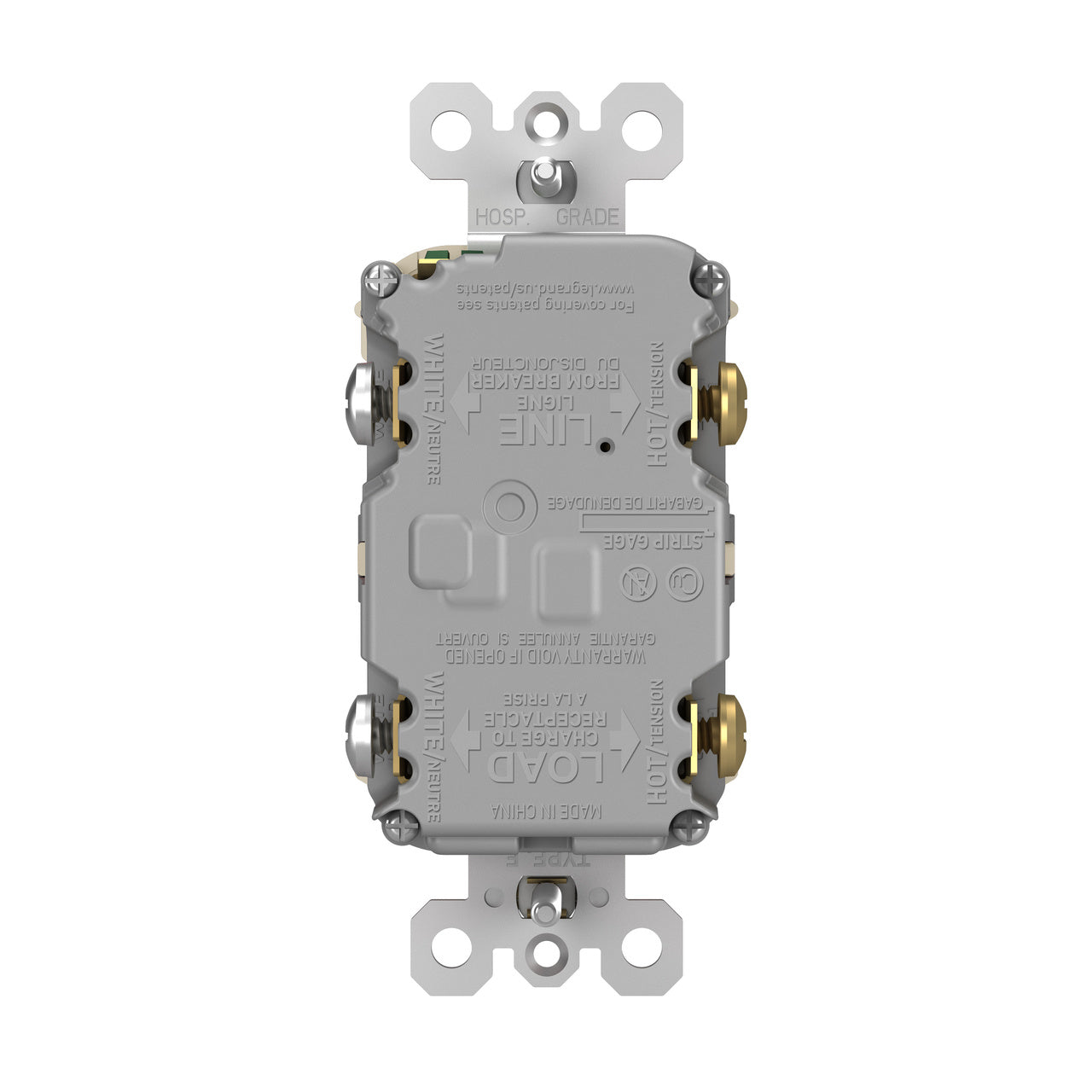

• Connection Location: Back and Side
• Wire Connection Type: Internal Pressure Plates, Screw Terminals
• Environmental Conditions: 95% Humidity, UL 94 Requirements, V2 Rated Flammability
• Indoor/Outdoor: Indoor
• Mounting Type: Flush
• NEMA Configuration Code: 5-20R
• Number of Gangs: 1
• Number of Poles: Double Pole
• Number of Wires: 3
• Voltage: 125 Volt
• Height: 4.2 Inch
• Width: 1.73 in
• Length: 1.03 Inch
• AD Application: Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
• AD Brand (Description): Pass & Seymour
• AD Country: USA
• AD Invoice Description: RECEPTACLE GFCI 125VAC 20A 2 3 LT ALMOND
• AD Manufacturer (Description): Legrand
• Brand: Pass & Seymour
• Category: RECEPTACLES & SURGE PROTECTORS
• Spec 1 Attribute: Amperage Rating
• Spec 1 Attribute UOM: A
• Spec 1 Attribute Value: 20
• Spec 10 Attribute: Series
• Spec 10 Attribute Value: 2097
• Spec 11 Attribute: Temperature Rating
• Spec 11 Attribute UOM: deg C
• Spec 11 Attribute Value: -35 To 66
• Spec 12 Attribute: Terminal Type
• Spec 12 Attribute Value: Back/Side Wire/Screw
• Spec 13 Attribute: Type
• Spec 13 Attribute Value: Duplex Self-Test
• Spec 14 Attribute: Voltage Rating
• Spec 14 Attribute UOM: V AC
• Spec 14 Attribute Value: 125
• Spec 2 Attribute: Color
• Spec 2 Attribute Value: Light Almond
• Spec 3 Attribute: Dimensions
• Spec 3 Attribute Value: 1.03 in L x 1.73 in W x 4.2 in H
• Spec 4 Attribute: Frequency Rating
• Spec 4 Attribute UOM: HZ
• Spec 4 Attribute Value: 60
• Spec 5 Attribute: Grade
• Spec 5 Attribute Value: Specification
• Spec 6 Attribute: Material
• Spec 6 Attribute Value: Nylon/Thermoplastic
• Spec 7 Attribute: NEMA Rating
• Spec 7 Attribute Value: NEMA 5-20R
• Spec 8 Attribute: Number Of Poles
• Spec 8 Attribute Value: 2
• Spec 9 Attribute: Number Of Wires
• Spec 9 Attribute Value: 3
• ECCN: EAR99
• UNSPSC: 39121633
• Application: Commercial/Residential
• Frequency: 60 Hz
• Grade: Specification
• Indoor Outdoor: Indoor
• Interrupt Rating: 4.0 A
• Material: Thermoplastic
• NEMA: 20A
• Operating Temperature: -35degrees C to +66degrees C
• TC Connection: Back and Side Wire
• Temperature Rating: -35 degrees C to 66 degrees C
• Trip Range: 4 mA
• Trip Type: .025 Second Nominal
• Type: Self-Test
• Sub Brand: The Radiant
• 12-Digit UPC: 785007036480
• GTiN: 00785007036480
• Product UPC: 78500703648
• Depth: 1.03 Inch
• Certifications: CULUS
• Connection Type: Back and Side Wire
• Actuator: Control Circuit
• Applications: Commercial, Residential Grade
