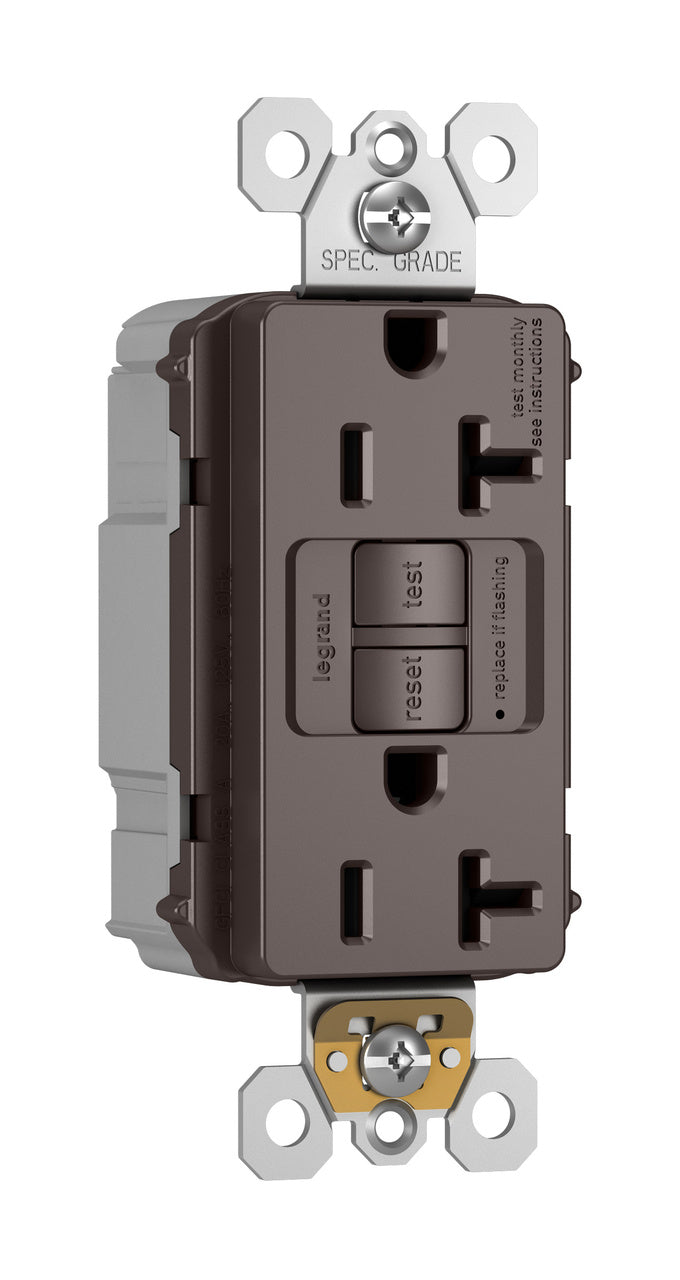

Legrand 2097-BK Radiant Duplex Self-Test GFCI Receptacle 20A

Product Description

The LEGRAND 2097-BK radiant GFCI receptacle self-tests automatically every three seconds for reliable shock protection. Meeting National Electrical Code requirements, these 20A outlets are ideal for larger appliances and regional requirements. GFCI protection is required in bathrooms, kitchens, garages, basements, and outdoor areas. Spec-Grade devices meet federal specifications for commercial installations.

• Protects against shock caused by ground-fault occurrences.
• Conducts an industry-leading automatic self-test every 3 seconds.
• Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected

Product Highlights

The GFCI receptacle features durable, high-impact resistant thermoplastic construction and can replace any standard receptacle with ease.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 2097-BK
• Country of Origin: China

Technical Specifications

• Color: Black
• Finish: Satin
• Application Sector: Commercial, Multi-Dwelling Unit, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Self-Test: Yes
• Wall Plate Included: Yes
• Number of Receptacles: 2
• Outlet Type: GFCI
• UPC Number: 785007035728
• Product Depth US: 1.03 in
• Product Height US: 4.2 in
• Product Width US: 1.73 in
• cULus ListingNumber: E42190
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Wire Connection Type: Internal Pressure Plates, Screw Terminals
• Indoor/Outdoor: Indoor
• Mounting Type: Box
• NEMA Configuration Code: 5-20R
• Number of Gangs: 1
• Number of Poles: Double Pole
• Number of Wires: 3
• Voltage: 125.0 V
• Product Environmental Profile: Yes
• Environmental Conditions: 95% (relative humidity, non-condensing)
• Collection: Radiant
• Location Rating: Dry Location
• Material: Thermoplastic
• Theme: Contemporary
• Vandal Resistant: No
• Grounded: Yes
• Voltage Type: Commercial Voltage (125V+)
• Brand: Legrand-Pass & Seymour
• Part Number #: 2097-BK
• SKU #: 2318299
• Amperage Rating: 20 A
• Frequency Rating: 60 Hz
• Horsepower: 1 hp
• NEMA Rating: NEMA 5-20R
• Series: 2097
• Temperature Rating (Degrees F): -35 to 66 deg C
• Terminal Type: Back/Side Wire
• Type: Duplex Self-Test
• Manufacturer Name: Legrand
• UNSPSC: 39121406
