Legrand 2087LA Radiant Dead Front Self-Test GFCI Receptacle 20 A 125 VAC (NEMA 5-20R) 2087-LA

Product Description

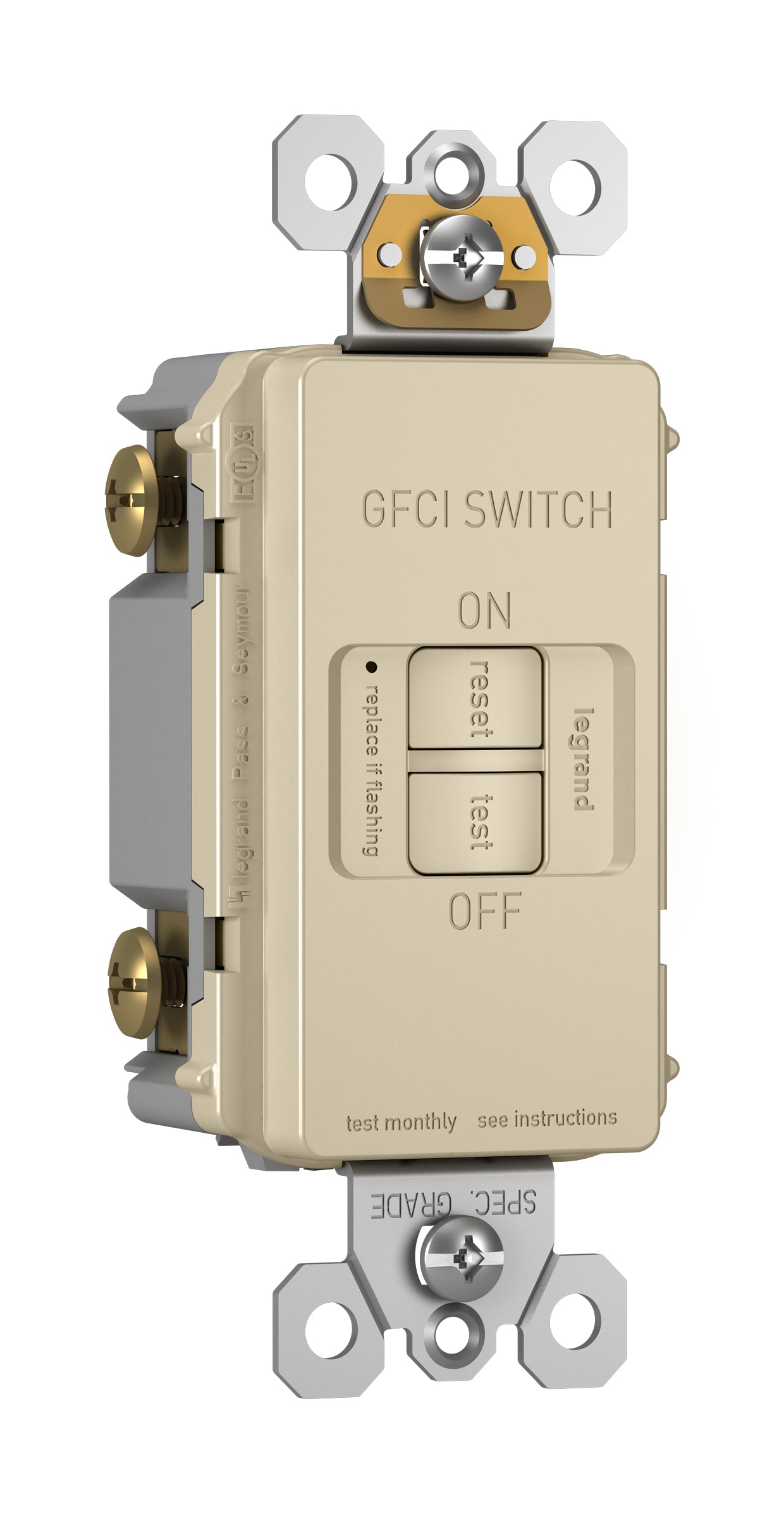

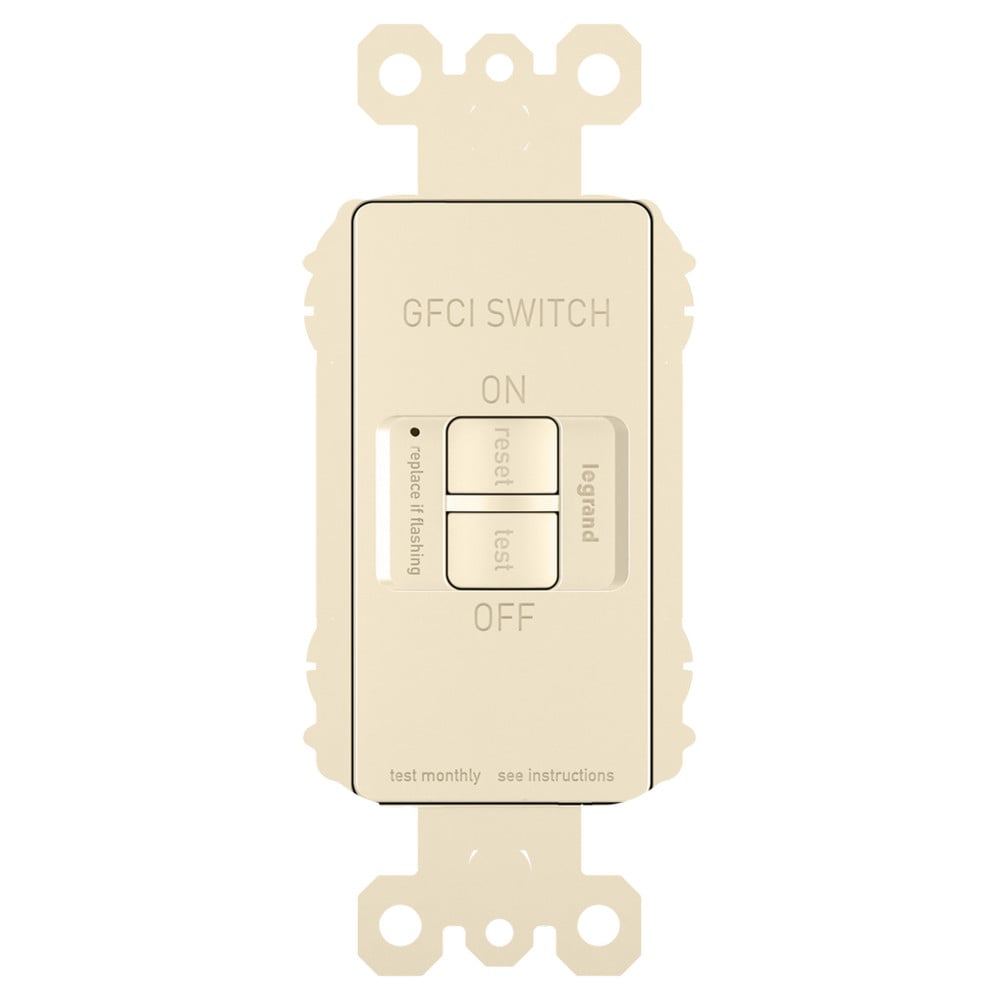

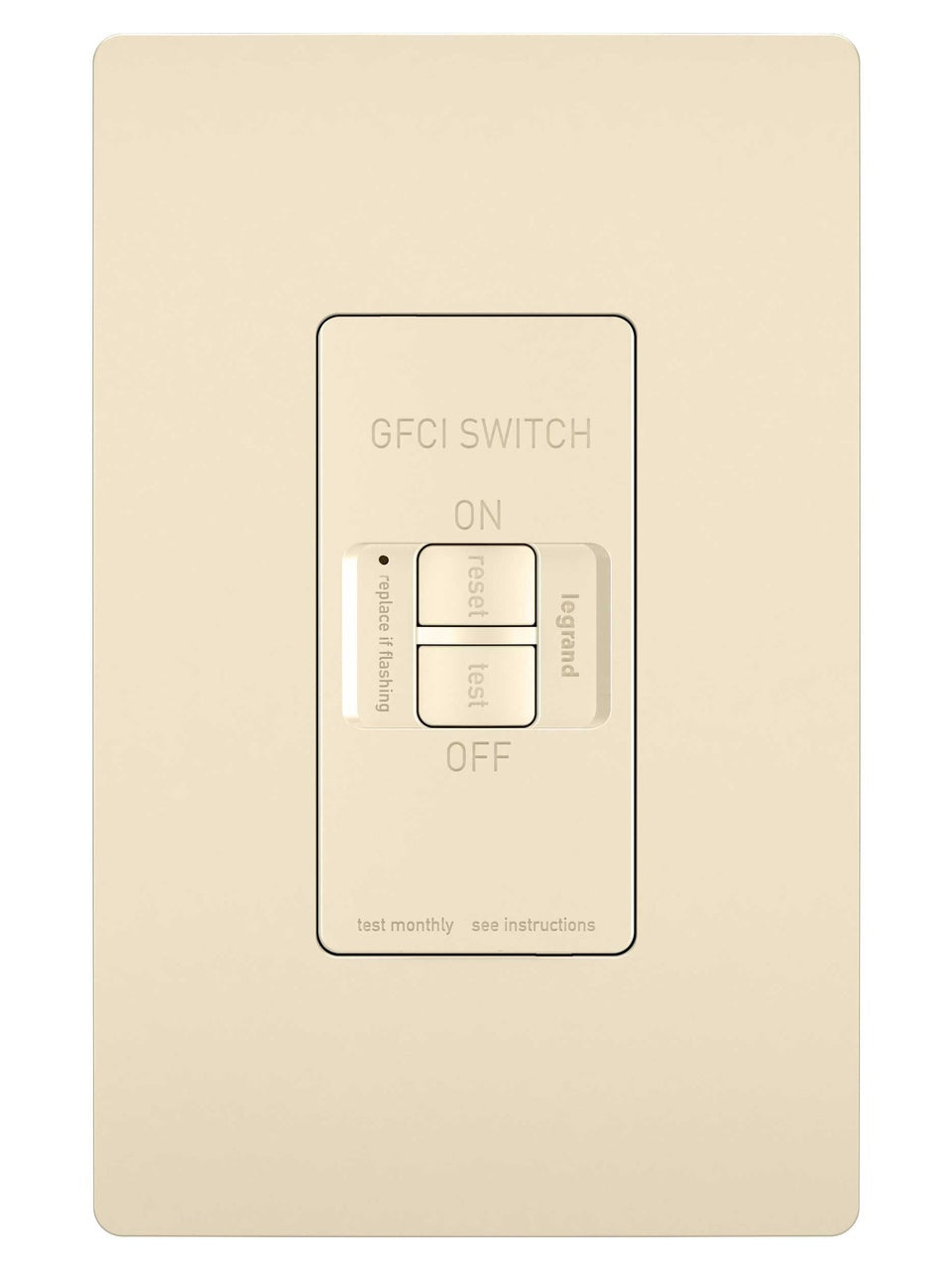

Legrand 2087LA is a Radiant dead-front self-test GFCI receptacle rated 125 VAC, 20 A and NEMA 5-20R. The device performs an automatic self-test every three seconds, provides SafeLock protection, and offers back and side wire screw terminals for 14 to 10 AWG conductors. It is specification grade with a 1-1/2 hp motor rating, 10 kA short-circuit rating, and an indicator LED for trip status.

• Automatic self-test every 3 seconds with indicator LED and SafeLock protection to disconnect power if protection is lost
• Rated 125 VAC, 20 A, NEMA 5-20R; 1-1/2 hp motor control rating; trip time 0.025 sec and trip range 4 to 6 mA
• Back and side wire screw terminals for #14 to #10 AWG, feed-through wiring to protect downstream receptacles, thermoplastic construction

Product Highlights

Specification-grade dead-front GFCI with self-test, SafeLock protection, feed-through wiring, and 14-10 AWG back/side terminations.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 2087LA
• Country of Origin: China

Technical Specifications

• Manufacturer: Legrand
• Brand: Legrand (Pass & Seymour / Radiant)
• Manufacturer Part Number: 2087LA
• Voltage Rating: 125 VAC
• Current Rating: 20 A
• NEMA Rating: NEMA 5-20R
• Poles: 2
• Motor Control Rating: 1-1/2 hp
• Self-Test Interval: Every 3 seconds
• Trip Time: 0.025 sec
• Trip Range: 4 to 6 mA
• Wire Size: #14 to #10 AWG
• Terminal Type: Back and side wire screw terminals
• Wiring Configuration: Feed-through (protects downstream receptacles)
• Material: Thermoplastic (nylon)
• Frequency: 60 Hz
• Operating Temperature: -35 to 66 deg C
• Short-Circuit Current Rating: 10 kA
• Mounting Type: Wall plate / Box
• Dimensions: 1.03 in L x 1.73 in W x 4.20 in H
• Weight: 0.25 lb
• Indicator: Red LED trip indicator
• Safety Feature: SafeLock protection (disconnects power if critical components are damaged)
• Standards/Certifications: UL 943; UL 498; cULus Listed; CSA C22.2 No. 42/144; UL 94 V-2
• Indoor/Outdoor: Indoor
• Country of Origin: China
