Product Description

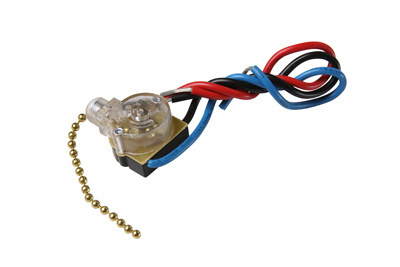

The Legrand 168950 is a pull chain switch designed for two circuits with a four-position operational mode. This switch features an on-off sequence where the first position activates the first circuit, the second position activates the second circuit, and both circuits can be activated together. It is suitable for residential applications. The product is RU listed, indicating it meets specific safety standards.
- Two circuit operation with four positions.
- Rated at 125 volts and 8 amps.
- Made from durable thermoplastic material.
Product Highlights
Ideal for controlling appliances, the pull chain makes it easy to switch circuits with minimal effort.
Product Information
Standard Information
-
Manufacturer: Legrand
-
Brand: Pass & Seymour
Technical Specifications
-
Catalog Number: 168950
-
Voltage Rating: 125 Volt
-
Amperage Rating: 8 Amp
-
Material: Thermoplastic
-
Dimensions: 1.13 inches height x 1.38 inches width x 1.38 inches depth
-
Application: Residential
-
Country of Origin: China
-
Certifications: CSA, UL Listed
