Product Description
The LEGRAND 1597-LA is a 15A GFCI duplex outlet featuring self-testing capabilities, conducting automatic tests every three seconds to ensure reliable ground fault protection. Meeting National Electrical Code requirements, GFCI receptacles make it easier to recognize and fix trips. It is suitable for residential and commercial applications.
- Protects against shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
Product Highlights
This GFCI outlet features a self-test feature that automatically checks the device every three seconds. The SafeLock protection ensures that if critical components are damaged, power is disconnected to prevent shock.
Product Information
Standard Information
-
Brand: LEGRAND
-
Manufacturer Part Number: 1597-LA
-
Country of Origin: China
Technical Specifications
-
Color: Light Almond
-
Finish: Matte Light Almond
-
Application Sector: Commercial, Multi-Dwelling Unit, Residential
-
Product Line: Pass & Seymour
-
Country Of Origin: China
-
Self-Test: Yes
-
Wall Plate Included: Yes
-
Number of Receptacles: 2
-
Outlet Type: GFCI,Indoor,Self-Test
-
Standard: cULus, UL Listed, FSUL
-
UPC Number: 785007036183
-

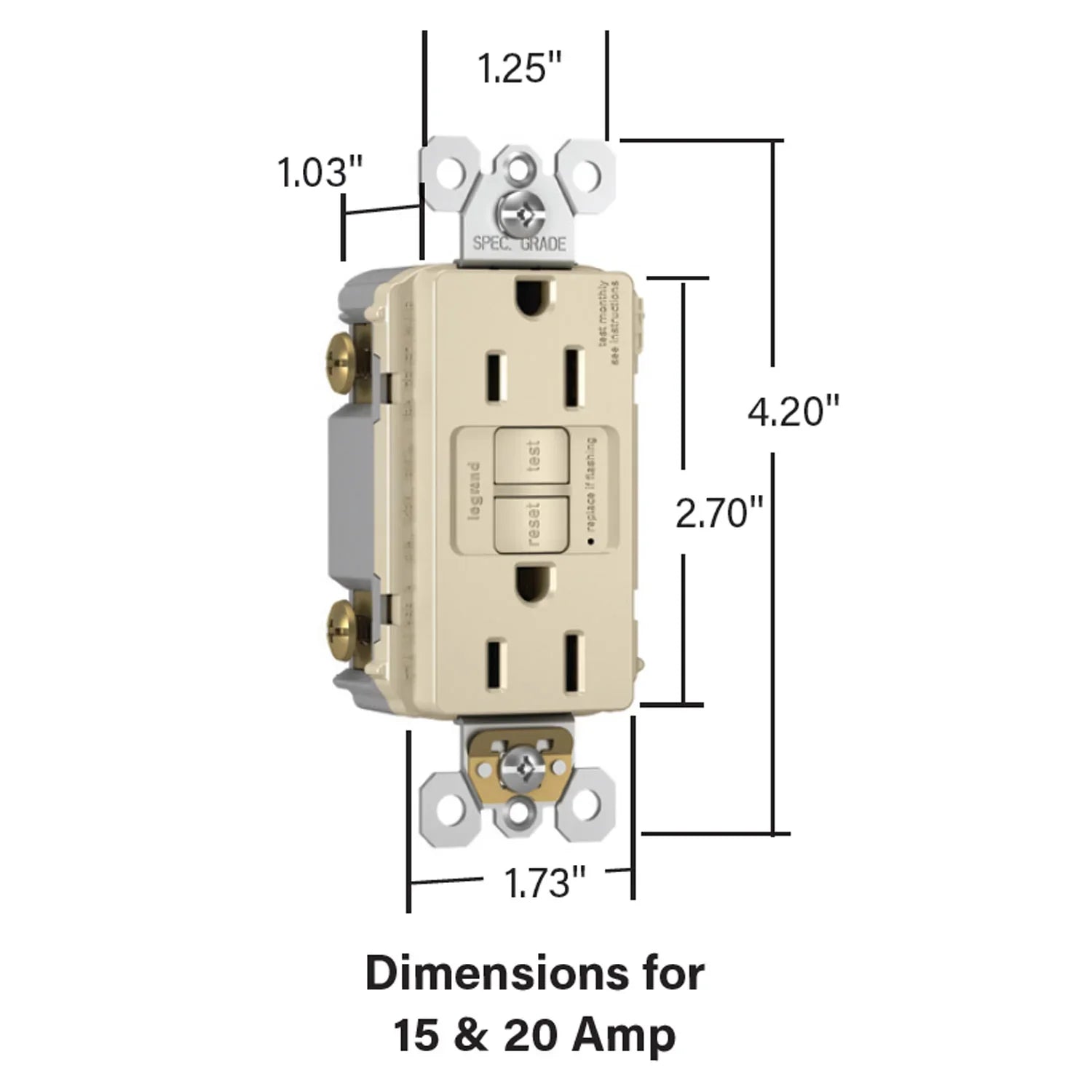

Product Depth US: 1.25 in
-
Product Height US: 4.2 in
-
Product Width US: 1.73 in
-
cULus ListingNumber: E42190
-
cULus Listed: Yes
-
Product Environmental Profile: Yes
-
Amperage: 15 A
-
Connection Location: Back and Side
-
Wire Connection Type: Internal Pressure Plates, Screw Terminals
-
Environmental Conditions: 95% Humidity, UL 94 V2
-
Indoor/Outdoor: Indoor
-
Mounting Type: Flush
-
NEMA Configuration Code: 5-15R
-
Number of Gangs: 1
-
Number of Poles: Double Pole
-
Number of Wires: 3
-
Voltage: 125.0 V
-
Frequency Rating: 60 Hz
-
Is Tamper-Resistant: Yes
-
Amps Rating: 15.0 A
-
Product Rating: NEMA 5-15R
-
Material: Thermoplastic
-
Length/Depth: 1.03 in
-
Brand: LEGRAND PASS & SEYMOUR
-
Family: Radiant
-
Grade: Specification
-
Operating Temperature: -35degrees C to +66degrees C
-
TC Connection: Back and Side Wire
-
Temperature Rating: -35 degrees C to 66 degrees C
-
Trip Range: 4 mA
-
Trip Type: .025 Second Nominal
-
Type: Self-Test
-
Depth: 1-1/4 Inch
-
Height: 4.2 Inch
-
Length: 1.03 Inch
-
Width: 1.73 in
-
Certifications: CULUS
-
Manufacturer: Legrand
-
Voltage Rating: 125 VAC
-
Series: 1597
-
Terminal Type: Back/Side Wire/Screw
-
Dimensions: 1.03 in L x 1.73 in W x 4.2 in H
-
Applications: Commercial, Residential Grade
-
Interrupt Rating: 4.0 A
-
NEMA: 15A
-
GTiN: 00785007036183
-
Product UPC: 78500703618
-
MPN: 1597-LA
