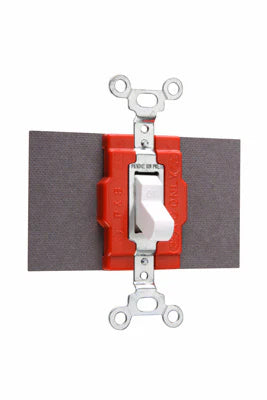

Legrand 1225W Pass & Seymour 1225-W Manual Control Switch, Single Pole / Double Throw, 20A 120/277V

Product Description

The Legrand 1225W is a reliable manual control switch designed for various industrial applications. This product features a single pole, double throw configuration. It operates at 20 amps and is rated for both 120 and 277 volts. The switch is suitable for wall mounting and is made from durable nylon, ensuring long-lasting performance.

• Rated for 20 amps at 120/277 volts
• Can be mounted in standard device boxes or NEMA 1 enclosures
• Accepts #14 to #10 AWG copper or copper-clad conductors

Product Highlights

Ideal for industrial settings where reliable control is necessary. The toggle actuator facilitates easy operation and provides a solid connection.

Product Information

Standard Information

• Brand: Legrand
• Manufacturer Part Number: 1225W

Technical Specifications

• Type: Manual Controller Switch
• Amperage Rating: 20 Amp
• Voltage Rating: 120/277 Volt
• Number of Poles: 1
• Dimensions: 3.281 in H x 1.5 in W x 1.469 in D
• Insulation: Bare
• Contact Configuration: SPDT
• Country of Origin: Mexico
