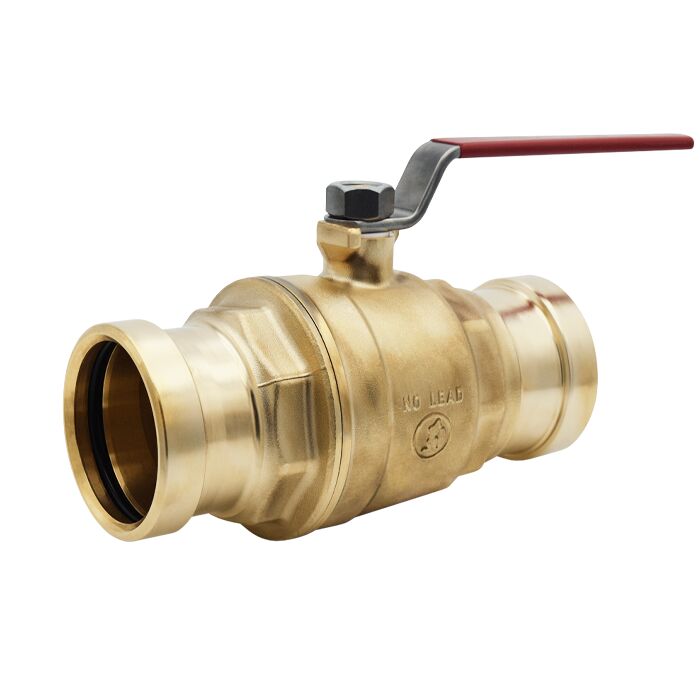

Legend Valve P-200NLXLC 101-011NL 4 Press Forged Brass Full Port Ball Valve

Product Description

The Legend Valve P-200NLXLC is a press forged brass full port ball valve designed for plumbing applications. This valve features press-to-connect connections suitable for ASTM B88 types K, L, and M hard-drawn copper tubing. The deeper tubing sockets and dual O-rings at each connection enhance stability and sealing during installation.

• Compatible with commercially available VUS profile jaws.
• Working pressure: 600 psi for half and three-quarter inch sizes.
• Lead-free construction for safe drinking water applications.

Product Highlights

This valve eliminates the need for soldering, thus reducing labor and material costs. Its design prevents fire hazards associated with soldering processes.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer: LEGEND VALVE

Technical Specifications

• Model Number: P-200NL XLC
• Product Type: Ball Valve
• Material: Forged Brass
• Working Pressure (CWP): 600 psi for 1/2 and 3/4 inch, 500 psi for 1 and 1-1/4 inch, 400 psi for 1-1/2 and 2 inch
• Maximum Service Temperature: 250 F @ 230 psi
• Certification: ANSI/NSF 61
• Valve Standards: ANSI/ASME B16.51 and MSS SP-110
