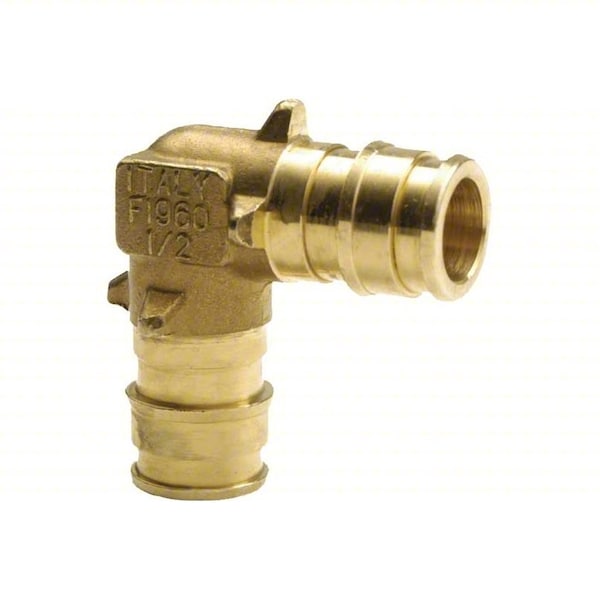

Legend Valve LF4710500 Elbow, Brass, Barbed 1/2 inches

Product Description

The LEGEND VALVE LF4710500 is a barbed fitting elbow made of brass. This elbow is designed for potable water applications. It has a fitting side A and fitting side B connection type of barbed, both with a pipe size of 1/2 in.

• Specific Fitting Shape: Elbow
• Standards: ASTM F1960, ASTM F877, CSA B137.5, NSF-14, NSF-372, NSF-61, UL 1821
• Barb Size: Standard

Product Highlights

Brass elbow fitting with barbed connections for potable water use, meeting industry standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LF4710500
• Country of Origin: Italy

Technical Specifications

• MFR #: LF4710500
• Zoro #: G012166067
• UPC #: 30673372269873
• Country of Origin: Italy
• Barb Size: Standard
• Overall Length: 1 15/32 in
• Fitting Side A Pipe Size: 1/2 in
• Fitting Side B Pipe Size: 1/2 in
• Fitting Side 1 Tube Inner Diameter: 1/2 in
• Fitting Side 2 Tube Inner Diameter: 1/2 in
• Item: Barbed Fitting Elbow
• Specific Fitting Shape: Elbow
• Standards: ASTM F1960, ASTM F877, CSA B137.5, NSF-14, NSF-372, NSF-61, UL 1821
• Application: Potable Water
• Fitting Material: Brass
• Compatible Tube Material: PEX
• Fitting Side A Connection Type: Barbed
• Fitting Side B Connection Type: Barbed
• Fitting Side 1 Connection Type: Barbed
• Operating Temperature - Maximum: 140 Degrees F
• PEX Connection Method: Expansion
• Operating Pressure - Maximum: 80 psi
• Fitting Side 2 Connection Type: Barbed
• For Media Type: Potable Water
• Operating Temperature - Minimum: 33 Degrees F
• Fitting Shape: Elbow
