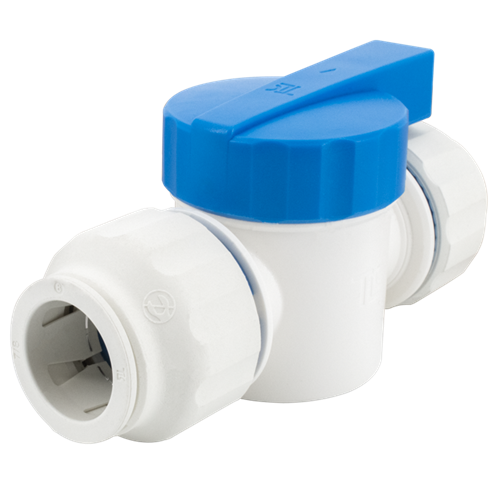

Legend Valve LEGE-465-083 Push Ball Valve 1/2 Inch

Product Description

The Legend Valve LEGE-465-083 is a 1/2 inch Turn-n-Loc push ball valve designed for quick, tool-free connection in water distribution and plumbing systems. It uses a push-to-connect inlet and outlet, allowing the technician to insert tubing without compression fittings or soldering. The valve meets ASSE 1061 certification, confirming it is tested for use with push-fit fittings in potable water applications. Licensed plumbers and mechanical contractors install this valve where fast shutoff access and reliable sealing are required in residential and light commercial plumbing work.

This push ball valve is suited for residential and light commercial plumbing installations where shutoff control is needed at individual fixture supply lines, appliance connections, or distribution manifolds. The push-to-connect x push-to-connect configuration simplifies installation in tight spaces and reduces labor time compared to solder or compression fittings. It is commonly used with PEX, copper, and CPVC tubing within the applicable size range.

Key Features

• Push-to-connect x push-to-connect configuration for tool-free, solder-free installation
• 1/2 turn operation provides fast, positive shutoff
• ASSE 1061 certified for push-fit fitting performance in potable water systems
• Turn-n-Loc design locks tubing securely on insertion
• Rated for use across a range of operating pressures and temperatures per ASSE 1061 standards

Compatibility

Designed as an OEM-style replacement and new-installation push ball valve for 1/2 inch push-to-connect plumbing applications. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by a licensed plumber or qualified mechanical contractor. Shut off the water supply and relieve system pressure before inserting or removing tubing from push-to-connect fittings. Ensure tubing is cut cleanly and squarely and deburred before insertion to achieve a proper seal. Work must comply with applicable local plumbing codes and IPC requirements for push-fit fittings in potable water systems.

Technical Specifications

• Size: 1/2 inch
• Configuration: Push-to-Connect x Push-to-Connect
• Pressure Rating (1/4 inch and 5/16 inch connections): 230 psi at 68 degrees F; 150 psi at 150 degrees F
• Pressure Rating (3/8 inch connections): 170 psi at 68 degrees F; 100 psi at 150 degrees F
• Certification: ASSE 1061
• UPC: 662545113470

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: LEGE-465-083
