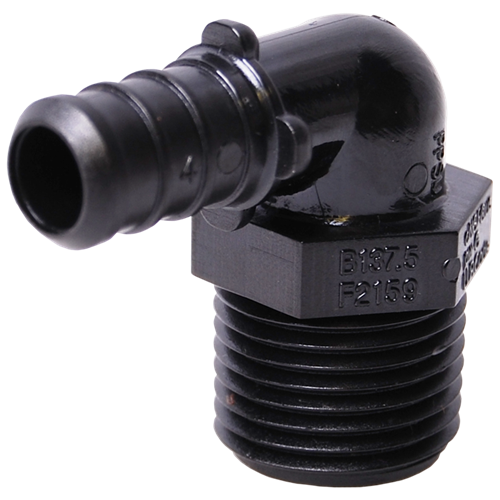

Legend Valve LEGE-461-025 Pex Elbow Fitting 3/4 in

Product Description

The LEGEND VALVE LEGE-461-025 is a 3/4-inch by 3/4-inch PEX x MNPT elbow fitting designed to transition a PEX tubing run to a male NPT threaded connection at a 90-degree change in direction. Constructed from plastic, this fitting is suited for potable water distribution and hydronic plumbing applications where a directional change and thread transition are needed in a single component. It is installed by licensed plumbers and experienced pipefitters working on residential or light commercial PEX piping systems. The elbow configuration reduces the need for additional adapters, keeping the connection count low and the install straightforward.

This fitting is used in residential and light commercial plumbing systems where PEX tubing connects to a male NPT-threaded fixture, valve, or equipment port. Typical scenarios include connecting PEX supply lines to threaded shutoff valves, manifold ports, or fixture supply stops. The 3/4-inch size is common on main distribution lines feeding branch circuits or zone valves in domestic water and radiant heating systems.

Key Features

• 3/4-inch PEX inlet by 3/4-inch MNPT outlet elbow configuration for directional transitions
• Plastic construction suitable for potable water and hydronic plumbing service
• PEX connection conforms to ASTM F2159 standard
• Single-piece elbow eliminates need for a separate straight adapter plus street elbow
• Male NPT thread end mates with standard NPT-threaded valves and fittings

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch PEX tubing systems conforming to ASTM F2159 specifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before cutting or joining any PEX tubing. Use the correct PEX cinch, clamp, or crimp tool rated for the fitting style before pressurizing the system. Apply thread sealant or PTFE tape to the male NPT threads before making up the threaded connection.

Technical Specifications

• Size: 3/4 inches x 3/4 inches
• Connection Type: PEX (ASTM F2159) x Male NPT
• Configuration: 90-Degree Elbow
• Material: Plastic
• UPC: 662545101606

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-461-025
