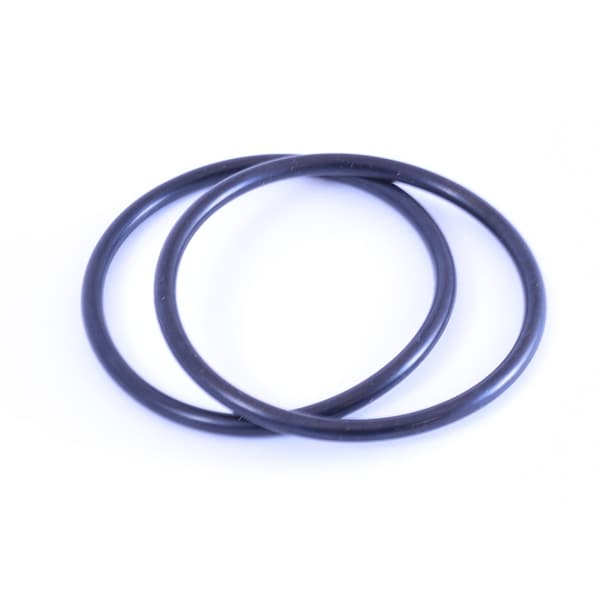

Legend Valve LEGE-450-995P Press Fitting Epdm O-ring

Product Description

The LEGEND VALVE LEGE-450-995P is a 1-1/2 inch replacement EPDM O-ring designed for use with press fittings in plumbing and mechanical piping systems. This O-ring provides the sealing element that creates a watertight connection when a press fitting is crimped onto copper or compatible tubing. Constructed from EPDM (ethylene propylene diene monomer) elastomer, it delivers reliable chemical resistance and flexibility across a wide service temperature range. It meets NSF/ANSI 61 standards, making it suitable for potable water applications. Plumbers and pipefitters installing or servicing press-fit systems will encounter this part as a standard replacement component.

This O-ring is used in residential and commercial plumbing installations wherever 1-1/2 inch press fittings are deployed. Common applications include domestic water distribution, hydronic heating systems, and mechanical room piping where press-fit technology is specified in place of soldered or threaded connections. It is also used during maintenance or inspection when an existing O-ring shows wear, deformation, or damage that could compromise the integrity of the pressed joint.

Key Features

• EPDM construction provides resistance to water, steam, and many common water treatment chemicals
• Sized at 1-1/2 inches to fit standard press fitting assemblies of that diameter
• Meets NSF/ANSI 61 certification for contact with potable water systems
• Direct replacement O-ring for press fitting maintenance and repair
• Manufactured to consistent dimensional tolerances for reliable seating in press fitting grooves

Compatibility

Designed as a replacement EPDM O-ring for 1-1/2 inch press fittings. Verify press fitting brand and groove profile specifications before installation to confirm fitment with your specific press fitting system.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Before replacing an O-ring on an active line, shut off the water supply and relieve system pressure completely. Inspect the O-ring groove in the fitting body for nicks, burrs, or debris before seating the new O-ring, as surface damage can cause seal failure even with a new component. Always confirm the replacement O-ring material is compatible with the fluid being conveyed and the operating temperature range of the system.

Technical Specifications

• Size: 1-1/2 inches
• Material: EPDM
• Connection Type: EPDM O-Ring for Press Fittings
• Standards: NSF/ANSI 61
• Country of Origin: China

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-450-995P
