Legend Valve LEGE-304-083 Pipe Nipple 3/4x2.5in Sch 40 SS304

Product Description

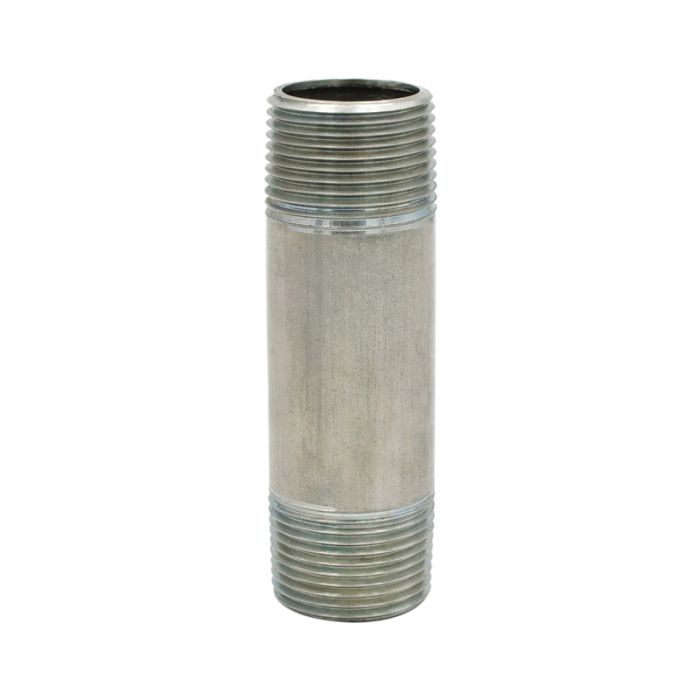

The LEGEND VALVE LEGE-304-083 is a Schedule 40 pipe nipple machined from 304 stainless steel, sized at 3/4 inch nominal with a 2-1/2 inch overall length. Both ends carry male NPT (MNPT) threads for direct connection to female-threaded pipe fittings, valves, or equipment ports. The 304 stainless alloy provides solid corrosion resistance in wet, chemical-exposure, and outdoor service environments. Schedule 40 wall thickness meets standard pressure ratings for typical commercial and industrial plumbing, hydronic, and process piping applications. Licensed plumbers and pipefitters are the primary installers, though HVAC and mechanical contractors frequently use stainless nipples on equipment connections and chemical feed lines.

This nipple is suited for residential and light commercial plumbing systems, hydronic heating and cooling distribution piping, pool and spa equipment connections, and general process piping where corrosion resistance is required. It connects threaded components such as valves, strainers, pumps, pressure gauges, and pipe unions. The 3/4 inch nominal size is among the most common in mechanical systems, making this nipple a frequent fit in manifold assemblies and equipment stub-out work.

Key Features

• 304 stainless steel construction for corrosion resistance in wet and chemically active service environments
• Schedule 40 / Standard wall thickness for reliable pressure-rated performance
• MNPT x MNPT thread form on both ends for straightforward threaded assembly
• 3/4 inch nominal diameter suits a wide range of valves, fittings, and equipment connections
• 2-1/2 inch length provides clearance for close-coupled valve and fitting assemblies

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch female NPT threaded connections in Schedule 40 plumbing, hydronic, and process piping systems.

Installation Notes

Installation is performed by licensed plumbers or qualified mechanical contractors. Shut off and depressurize the line before disassembly or installation. Apply an appropriate thread sealant or PTFE tape to the male threads before making up connections. Follow local plumbing codes and IPC guidelines for thread engagement, support spacing, and approved materials for the specific fluid service.

Technical Specifications

• Nominal Size: 3/4 inches
• Length: 2-1/2 inches
• Schedule Rating: SCH 40 / Standard
• Material: 304 Stainless Steel
• Connection Type: MNPT x MNPT

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-304-083
