Legend Valve LEGE-304-082 Pipe Nipple 3/4x2 in Sch 40 Ss

Product Description

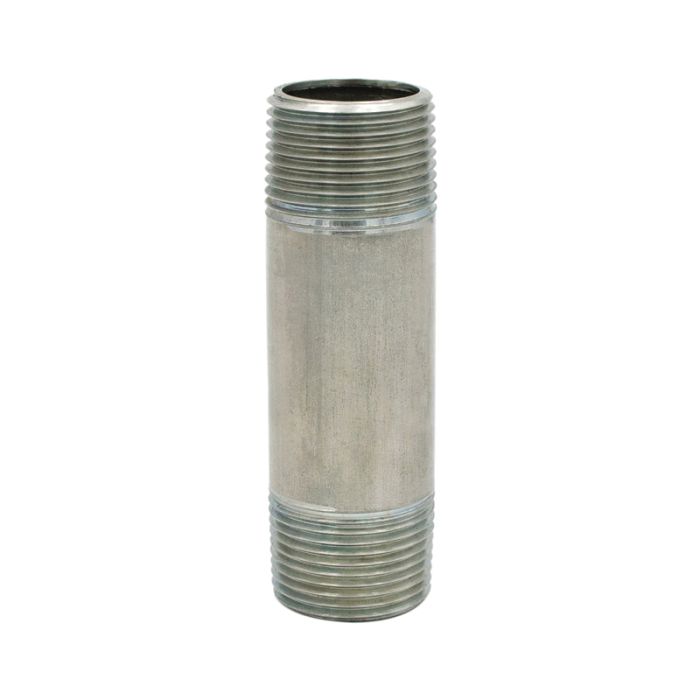

The LEGEND VALVE LEGE-304-082 is a Schedule 40 threaded pipe nipple machined from 304 stainless steel. It measures 3/4 inch nominal diameter by 2 inches in length and features male NPT threads on both ends. This nipple is designed to join sections of pipe or connect pipe to fittings in water supply, process piping, and mechanical systems. The 304 stainless steel construction resists corrosion in wet and mildly corrosive service environments, and the Schedule 40 wall thickness meets standard pressure ratings for most commercial and residential piping applications. Licensed plumbers and pipefitters are the primary installers of this fitting.

This nipple is suited for use in residential and light commercial plumbing, hydronic heating systems, industrial process lines, and mechanical room piping assemblies where a short close-nipple connection is needed between two threaded fittings or components. The 2-inch body length makes it a standard close-to-short-range spacer nipple. Its lead-free 304 stainless steel material makes it appropriate for potable water systems where corrosion resistance and code compliance are both required.

Key Features

• 304 stainless steel construction for corrosion resistance in wet and mildly aggressive service conditions
• Schedule 40 / Standard wall thickness rated for typical residential and commercial system pressures
• Male NPT threads on both ends for straightforward threaded connections
• Lead-free construction suitable for potable water applications
• 3/4 inch nominal diameter at 2 inches in length provides a compact, precise spacing connection

Compatibility

Designed as an OEM-style replacement or new-installation threaded nipple for 3/4 inch Schedule 40 NPT piping systems in plumbing, hydronic, and mechanical piping assemblies.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off the water supply and relieve system pressure before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male NPT threads before assembly. Tighten to hand-tight plus additional turns with a pipe wrench, following IPC and local plumbing code requirements — do not overtighten stainless steel threads, as galling can occur.

Technical Specifications

• Nominal Size: 3/4 inch
• Length: 2 inches
• Thread Type: MNPT x MNPT
• Schedule Rating: SCH 40 / Standard
• Material: 304 Stainless Steel
• Lead Free: Yes
• Package Weight: 0.13 pounds

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-304-082
