Legend Valve LEGE-303-407 No Hub Coupling 1-1/2 in

Product Description

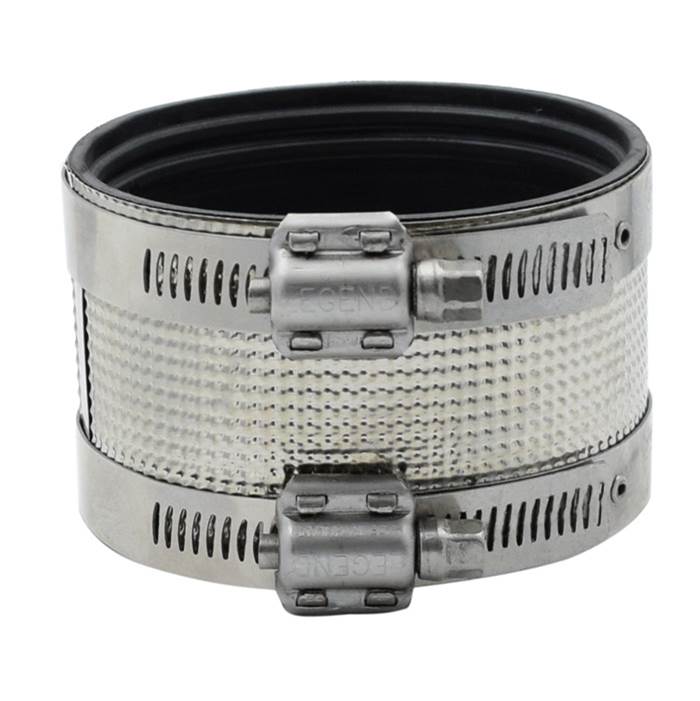

The LEGEND VALVE LEGE-303-407 is a 1-1/2 inch no hub coupling used to join cast iron or compatible no-hub pipe in drain, waste, and vent (DWV) systems. No hub couplings connect pipe sections without the need for threaded or bell-end joints, using a neoprene sleeve and stainless steel band clamp assembly to create a leak-resistant connection. This fitting is installed by licensed plumbers and pipefitters in both new construction and repair work on underground and above-grade DWV piping.

This coupling is suited for residential and light commercial plumbing applications where no-hub cast iron pipe is used for drain, waste, and vent lines. It is commonly installed at pipe joints, transitions, or repair sections in horizontal and vertical DWV runs. It is appropriate for use in interior rough-in plumbing where no-hub code-compliant connections are required.

Key Features

• 1-1/2 inch pipe size fits standard no-hub DWV pipe
• No hub design eliminates the need for threaded or hub-and-spigot connections
• Suitable for drain, waste, and vent line applications
• Compact coupling format allows use in confined spaces and repair scenarios

Compatibility

Designed as an OEM-style replacement and standard-fit coupling for 1-1/2 inch no-hub cast iron DWV piping systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Before beginning work, isolate and drain the affected pipe section. Band clamps should be tightened using a torque-limiting screwdriver or nut driver to the clamp manufacturer's specification. Do not overtighten the band clamps, as this can damage the neoprene sleeve and compromise the seal.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Connection Type: No Hub
• UPC: 662545043234

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-303-407
