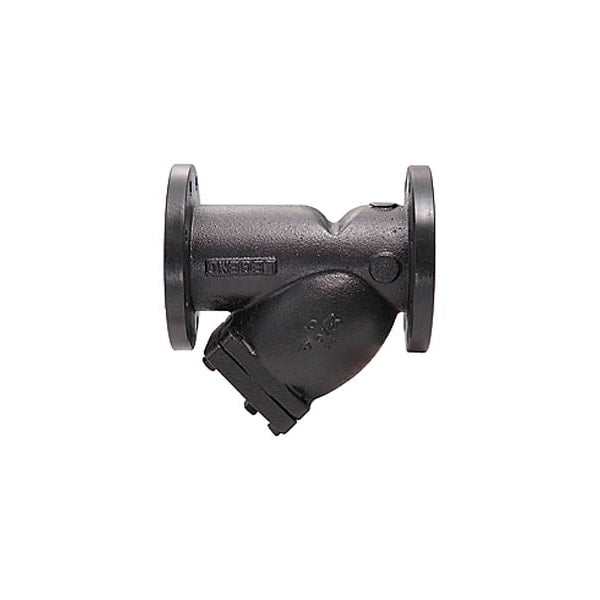

Legend Valve LEGE-105-614 Flanged Y-strainer 4 in

Product Description

The LEGEND VALVE LEGE-105-614 is a 4-inch cast iron flanged Y-strainer designed to remove debris and particulate from fluid systems in commercial and industrial piping applications. Rated at 125 WSP and 200 CWP to Class 125 standards, this strainer provides reliable service in steam, water, and general-purpose liquid lines. The flanged end connections allow for straightforward inline installation and easy removal for cleaning or screen inspection. Licensed plumbers and mechanical contractors specify cast iron Y-strainers like this one for protecting downstream equipment such as pumps, meters, and control valves from scale and pipe debris.

This strainer is suited for use in hydronic heating systems, chilled water systems, process piping, and steam distribution lines where a 4-inch flanged inline strainer is required. The Class 125 flanged configuration aligns with standard ANSI 125 flange patterns common in commercial mechanical systems. It is typically installed upstream of pumps, steam traps, and control valves to extend equipment service life and reduce maintenance intervals.

Key Features

• 4-inch flanged connection for direct inline installation with Class 125 mating flanges
• Cast iron body provides durability in water, steam, and general fluid service
• Rated 125 WSP for steam applications
• Rated 200 CWP for cold water pressure service
• Y-strainer geometry allows blowdown or screen removal without full line disassembly

Compatibility

Designed as an OEM-style replacement or new-installation flanged Y-strainer for 4-inch Class 125 piping systems in commercial hydronic, steam, and process water applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical codes including the IPC and IFGC. Isolate and depressurize the line and allow it to cool fully before cutting in or removing the strainer. Orient the strainer body so the screen pocket faces downward or horizontally per the system design to allow sediment collection and facilitate blowdown. Torque flange bolts evenly in a cross pattern following standard piping practice for the gasket and flange material in use.

Technical Specifications

• Size: 4 inches
• Connection Type: Flanged
• Body Material: Cast Iron
• Pressure Rating (Steam): 125 WSP
• Pressure Rating (Cold Water): 200 CWP
• Standard: Class 125
• Country of Origin: China

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-105-614
