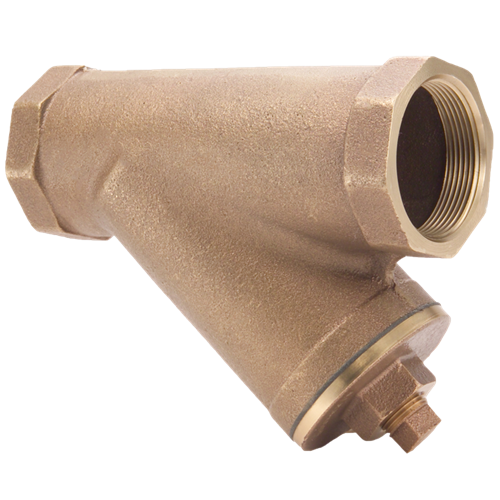

Legend Valve LEGE-105-506NL No Lead Bronze Y-strainer

Product Description

The LEGEND VALVE LEGE-105-506NL is a no lead bronze Y-strainer designed to protect downstream plumbing components from debris and particulate in water supply systems. Rated at 150 WSP and 300 CWP, this strainer handles both steam and cold water pressure demands common in commercial and residential installations. It ships with a 20-mesh stainless steel screen installed, providing reliable filtration without requiring separate screen procurement. The FNPT x FNPT end connections make it compatible with standard threaded pipe assemblies. Licensed plumbers and pipefitters install this fitting as part of routine system protection on supply lines serving valves, meters, and other sensitive equipment.

This Y-strainer is sized at 1-1/4 inches and suited for installation in water distribution piping where solids removal is required before flow reaches control valves, pressure regulators, or other equipment. Its no lead bronze construction meets lead-free requirements applicable to potable water systems, making it appropriate for both new construction and retrofit service in residential and light commercial settings.

Key Features

• No lead bronze body meets lead-free potable water requirements
• Includes 20-mesh stainless steel screen for in-line filtration
• FNPT x FNPT connections for standard threaded pipe assembly
• Rated 150 WSP for steam service applications
• Rated 300 CWP for cold water pressure applications
• 1-1/4 inch pipe size fits common supply line configurations

Compatibility

Designed as an OEM-style replacement or new-installation Y-strainer for 1-1/4 inch threaded pipe systems in potable water, hydronic, and steam distribution applications.

Installation Notes

A licensed plumber should install this strainer in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line fully before threading any connections. Apply appropriate thread sealant or PTFE tape to male threads before assembly, and orient the strainer body so the screen basket is accessible for periodic cleaning and inspection. Never exceed the rated working pressures for the intended service type.

Technical Specifications

• Size: 1-1/4 inches
• End Connections: FNPT x FNPT
• Body Material: No Lead Bronze
• Screen Material: Stainless Steel
• Screen Mesh: 20-Mesh
• Steam Working Pressure: 150 WSP
• Cold Water Pressure: 300 CWP

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-105-506NL
