Legend Valve LEGE-105-503NL Y-Strainer 1/2 Inch FIP x FIP T-15NL

Product Description

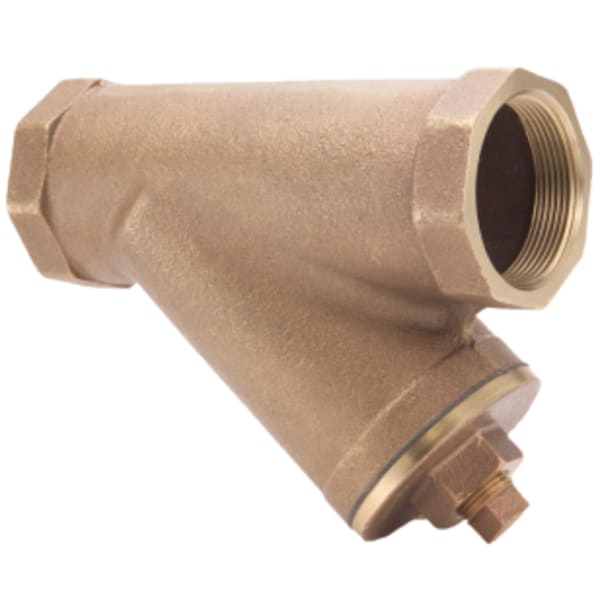

The Legend Valve LEGE-105-503NL is a 1/2 inch FIP x FIP no lead cast bronze Y-strainer, designed to protect downstream components by trapping debris. It includes a 20-mesh stainless steel screen for effective filtration. This heavy-duty, full-pattern bronze construction resists pipeline stresses and distortion, ensuring durability. Suitable for potable water installations, it features a lead-free design and a square-head closure plug. Self-cleaning can be achieved by opening the valve or plug connected to the blow-off outlet.

• FIP x FIP connection for secure installation.
• Includes a 20-mesh stainless steel screen for efficient debris filtration.
• Constructed from no lead cast bronze, suitable for potable water applications.

Product Highlights

Protects downstream components, features lead-free cast bronze construction, and includes a 20-mesh stainless steel screen for effective filtration.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-105-503NL
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• Connection Type: FIP x FIP
• Screen Mesh: 20-Mesh
• Screen Material: Stainless Steel
• Nominal Size: 1/2 Inch
• Body Material: No Lead Cast Bronze
• Grade: Commercial
• Overall Length: 3.21
• Blow-Off Size: 3/8 in NPT
• Overall Width: 3.21
• Series: T-15NL
