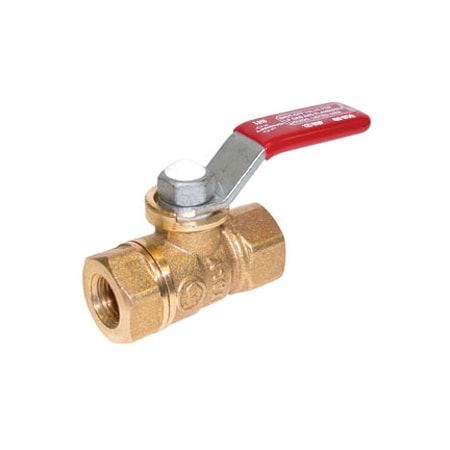

Legend Valve LEGE-101-000 Micro Ball Valve 1/8 Inch

Product Description

The LEGEND VALVE LEGE-101-000 is a 1/8 inch forged brass micro ball valve designed for precise flow shutoff in compact plumbing and fluid system applications. Built to a 125 WSP and 500 CWP pressure rating, this valve delivers reliable isolation performance where space is limited. The forged brass construction provides durability and resistance to corrosion in potable water and general-purpose fluid service. FNPT x FNPT end connections allow straightforward threaded installation into existing pipework without adapters. Licensed plumbers and mechanical contractors typically specify this valve for tight-clearance installations where standard-size ball valves cannot fit.

This micro ball valve suits residential and light commercial plumbing systems where a small-diameter shutoff is required. Common applications include water supply lines, compressed air service, and instrument isolation in mechanical rooms or equipment panels. The 1/8 inch size makes it appropriate for branch connections, test ports, and gauge isolation points. Its compact form factor and rated pressure capacity make it a practical choice wherever a reliable quarter-turn shutoff is needed in a restricted installation envelope.

Key Features

• Forged brass body for strength and corrosion resistance in fluid service
• Rated 125 WSP and 500 CWP for dependable pressure performance
• FNPT x FNPT connections for direct threaded installation
• 1/8 inch size suited to compact and tight-clearance applications
• Quarter-turn ball valve operation for fast, positive shutoff

Compatibility

Designed as an OEM-style replacement or new-installation micro ball valve for 1/8 inch FNPT threaded plumbing and fluid system connections in residential and light commercial service.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local codes and IPC requirements. Shut off the water supply and relieve system pressure before removing or installing any valve. Use thread sealant tape or compound rated for the intended service fluid on all FNPT connections and tighten to hand-tight plus the appropriate number of turns without over-torquing the brass fittings. Confirm the valve handle orientation matches the intended open or closed position before returning the system to service.

Technical Specifications

• Size: 1/8 inch
• Connection Type: FNPT x FNPT
• Body Material: Forged Brass
• Working Pressure (Steam): 125 WSP
• Working Pressure (Cold Water): 500 CWP
• Country of Origin: Italy

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEGE-101-000
