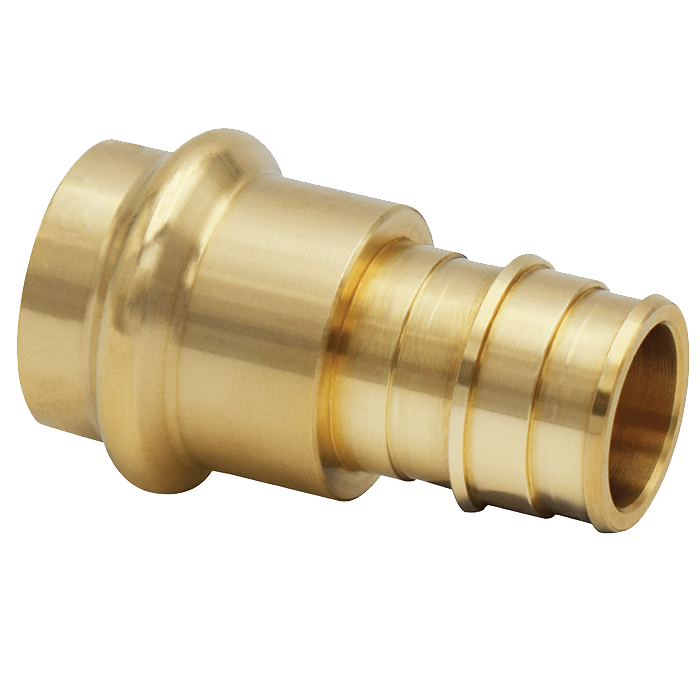

Legend Valve LEG450-867P Nl Press x F1960 Pex Adapter 1-1/2 inches

Product Description

The LEGEND VALVE LEG450-867P is a no lead DZR forged brass PEX (F1960) adapter that adapts a line from copper press to PEX piping. It features press-type end connections which eliminate the need for soldering, reducing labor and material costs and eliminating the fire hazard associated with the process. It is NSF certified to NSF/ANSI Standard 61, including NSF/ANSI 372.

• LegendPress no lead DZR forged brass PEX (F1960) adapter
• Adapts a line from copper press to PEX piping
• NSF certified to NSF/ANSI Standard 61, including NSF/ANSI 372

Product Highlights

The LegendPress adapter is designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing. It has a pressure rating of 200 psi and a temperature rating of 0 to 250 deg F.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG450-867P

Technical Specifications

• ITEM NUMBER: 450-867P
• UPC: 662545131702
• SIZE: 1-1/2"
• CONFIGURATION: Press x PEX (F1960)
• DESCRIPTION: 1-1/2" NO LEAD PRESS x PEX F1960 ADAPTER
• Connection Size 1: 1-1/2 in
• Connection Size 2: 1-1/2 in
• Connection Type 1: Press
• Connection Type 2: F1960 PEX
• Connection Type: Press|PEX
• Fitting Type: Adapter
• Material Construction: Brass
• Material: Brass
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Additional Information: Lead-Free
