Legend Valve Leg301-105pnl 1 inches Fnpt x Copper Press Dielectric Union, P-571nl Replacement 79165

Product Description

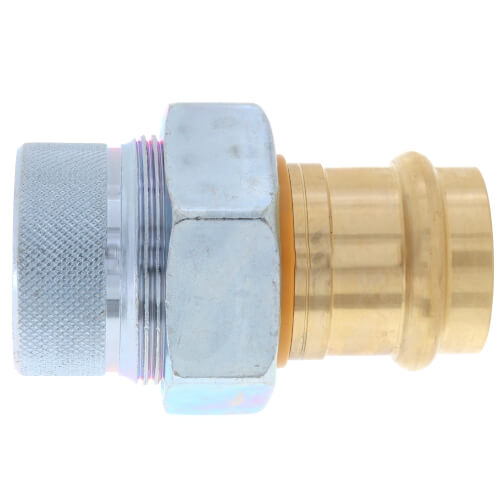

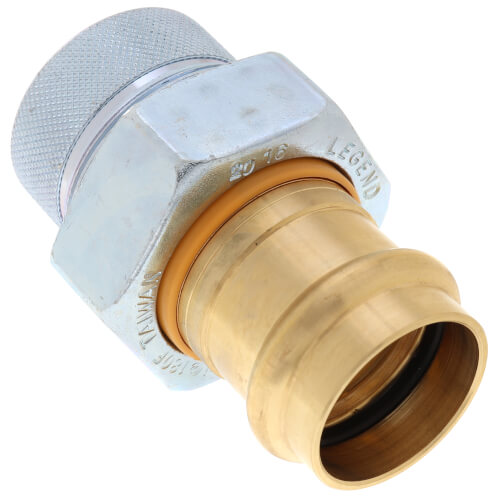

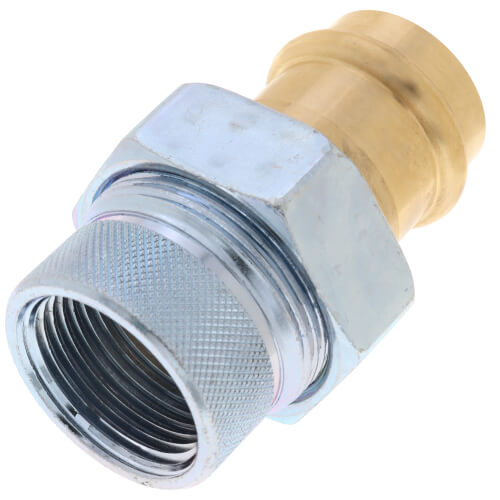

The LEGEND VALVE LEG301-105PNL is a 1" Fnpt x Copper Press Dielectric Union, P-571nl, designed to reduce stray current and galvanic corrosion when joining dissimilar metals. Constructed with high-strength, galvanized forged steel, it's suitable for residential and commercial applications. It is manufactured for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing.

• Lead-free design is suitable for all no-lead potable water installations, in full compliance of the National lead-free plumbing law (111-380).
• Made to reduce stray current and galvanic corrosion where two dissimilar metals are joined.
• Self-aligning, non-conductive elastomer gasket and thermoplastic insert create a positive seal and complete isolation between the tubing and piping ends.

Product Highlights

This dielectric union ensures a positive seal and complete isolation between tubing and piping ends, ideal for residential and commercial use.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG301-105PNL
• Country of Origin: Import

Technical Specifications

• Material: Copper
• Size: 1"
• Product Type: Dielectric Union
• Connection Type: Press x FNPT
• No lead: Yes
• MPN: 301-105PNL
• End Style: FNPT x Press
• Finish: Hot Dipped Galvanized
• Method of Manufacture: Forged
• Nominal Size: 1 in
• Pressure Rating: 200 psi CWP
• Series: P-571NL
• Temperature Rating: Up to 180 deg F
• Application: Residential & Commercial
• Suitable Tubing: ASTM B88 hard-drawn copper types K, L and M
• CWP: 200 PSI to 180F
• WSP: 250F at 15PSI w/ special gasket
