Legend Valve Leg301-103nl T-571nl Dielectric Union 1/2 in Leg301-103nl

Product Description

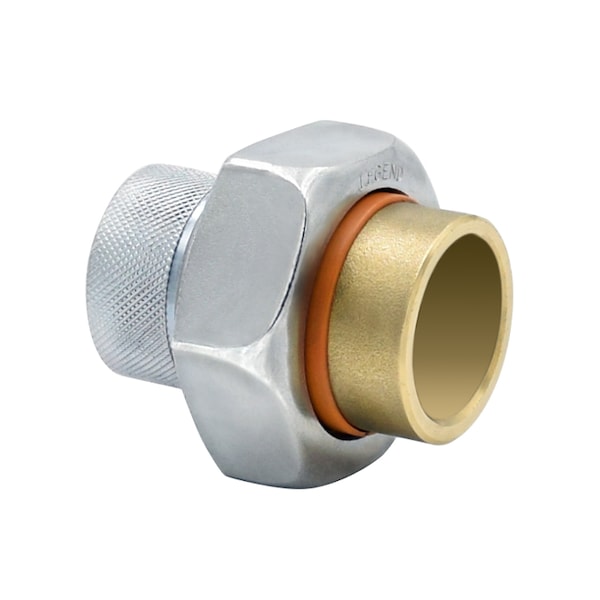

The LEGEND VALVE LEG301-103NL is a lead-free dielectric union from the T-571NL series, sized at 1/2 inch nominal. Constructed from forged carbon steel with a galvanized finish, it is designed for residential, commercial, and industrial applications. It measures 1.84 inches in length and 1.44 inches in width, with a pressure rating of 200 psi and a temperature rating of 180 deg F.

• Reduces stray current and galvanic corrosion when joining dissimilar metals.
• Manufactured with the latest technologies for material consistency and dimensional tolerances.
• All fittings are UL listed and FM approved for fire suppression.

Product Highlights

This Legend dielectric union is suitable for potable water applications and complies with ANSI/ASME standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG301-103NL
• Country of Origin: TW

Technical Specifications

• Brand: LEGEND
• Nominal Size: 1/2 in
• End Style: FNPT x C
• Material: Forged Carbon Steel
• Finish: Galvanized
• Manufacturer Name: Legend
• Pressure Rating: 200 psi
• Series: T-571NL
• Temperature Rating: 180 deg F
• Application: For Potable Water Applications
• Domestic/Import: Import
• Country of Origin: TW
• Standards and Approvals: ANSI/ASME B1.20.1/B16.39/B16.18 | NSF 372 | U.S. Federal Public Law 111-380
