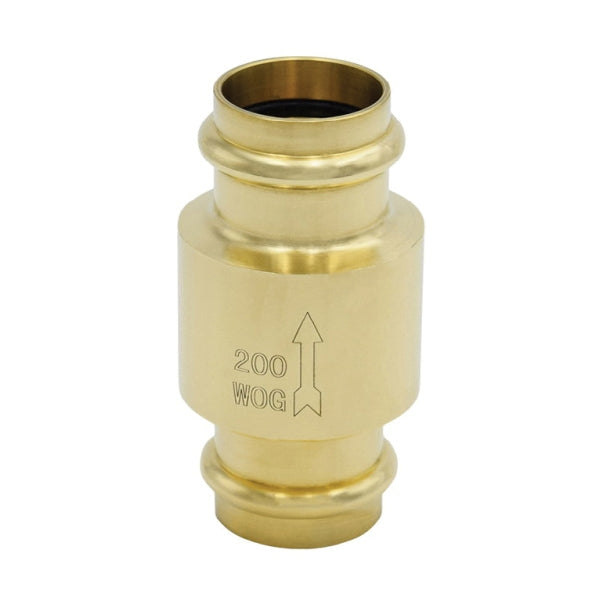

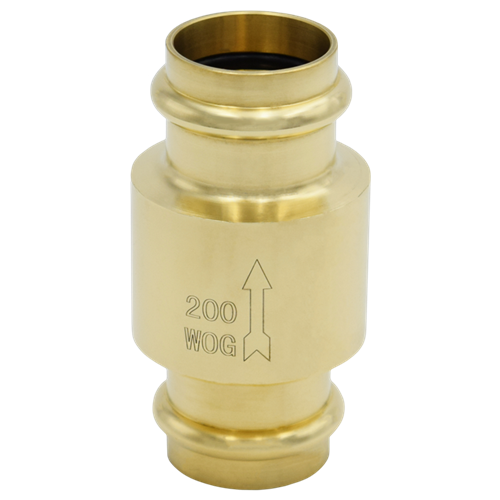

Legend Valve Leg105-458nl 2 No Lead Press Inline Check 2 inches

Product Description

The LEGEND VALVE LEG105-458NL is a 2" no lead press inline check valve. It features large, integral seat and disc sealing surfaces that assure positive closure. Designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing. Coiled (annealed) soft copper tubing is not recommended for use with this product.

• Large, integral seat and disc sealing surfaces assure positive closure
• EPDM seat for quiet operation, spring loaded stem disc
• Can be installed in both vertical and horizontal positions

Product Highlights

The LEGEND VALVE LEG105-458NL is a 2" forged in-line check valve with a brass body, suitable for water media up to 180 deg F.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG105-458NL
• Country of Origin: Import

Technical Specifications

• UPC: 662545137926
• Size: 2"
• Configuration: Press x Press
• Body Material: Brass
• End Style: Press
• Media: Water
• Nominal Size: 2 in
• Pressure Rating: 200 psi CWP
• Series: P-450NL
• Softgoods Material: EPDM
• Temperature Rating: Up to 180 deg F
• Trim Material: Stainless Steel/EPDM
• Type: Forged
• Inlet to Outlet Length: 5.32 in
