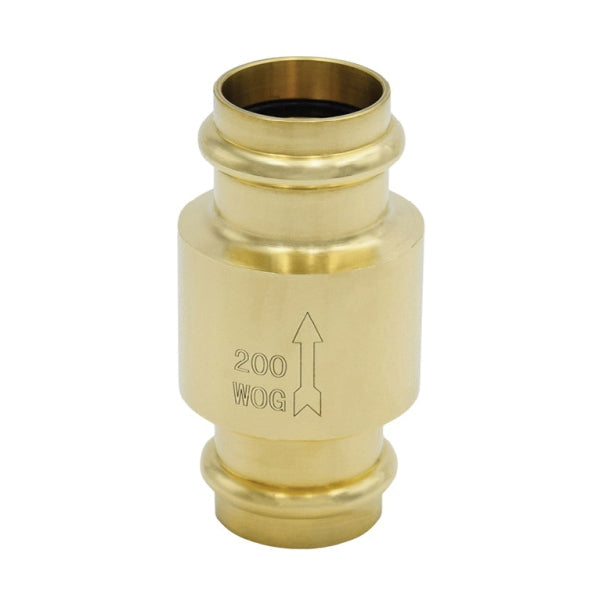

Legend Valve LEG105-457NL Inline Spring Check Valve 1-1/2 inches

Product Description

The Legend Valve LEG105-457NL is a 1-1/2" no-lead press inline spring check valve. It features large, integral seat and disc sealing surfaces to assure positive closure. Suitable for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing and can be installed in both vertical and horizontal positions.

• Large, integral seat and disc sealing surfaces assure positive closure
• EPDM seat for quiet operation; spring-loaded stem-disc
• 1-pound cracking pressure

Product Highlights

This lead-free forged in-line check valve has a brass body and is suitable for water applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG105-457NL
• Country of Origin: Import

Technical Specifications

• Size: 1-1/2"
• Connection Type: Press x Press
• Product Material: Lead-Free Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 4.69 in
• Media: Water
• Nominal Size: 1-1/2 in
• Pressure Rating: 200 psi CWP
• Series: P-450NL
• Softgoods Material: EPDM
• Temperature Rating: Up to 180 deg F
• Trim Material: Stainless Steel/EPDM
• Type: Forged
