Legend Valve Leg105-109nl 2-1/2 brs lf ckv T-451nl

Product Description

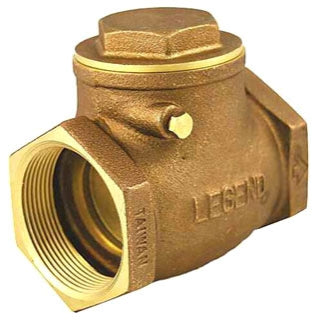

The LEGEND VALVE LEG105-109NL is a swing, T-pattern type check valve. Constructed with UNS C87850 cast brass alloy body and cap material, and UNS C69300 forged brass alloy disc material. Suitable for potable water applications with a 200 PSI CWP pressure rating. Features a forged brass hinge pin, large integral seat and non-binding disc.

• Swing, T-pattern type
• Lead-Free
• Female threaded x female threaded end connection

Product Highlights

Ideal for potable water applications. Features a forged brass hinge pin, large integral seat and non-binding disc.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG105-109NL

Technical Specifications

• Nominal Size: 2-1/2 INCH X 2-1/2 INCH
• Applicable Standard: ANSI/ASME B1.20.1, NSF/ANSI 372, ISO 9002
• Application: POTABLE WATER
• Inclusions/Features: FORGED BRASS HINGE PIN, LARGE INTEGRAL SEAT AND NON-BINDING DISC
• Body Material: UNS C87850 CAST BRASS ALLOY
• Pressure Rating: 200 PSI CWP
• End Connection: FEMALE THREADED X FEMALE THREADED
• End to End Distance: 5.16 INCH
• Disc Material: UNS C69300 FORGED BRASS ALLOY
• Cap Material: UNS C87850 CAST BRASS ALLOY
• Lead-Free: LEAD-FREE
• Model: T-451NL
