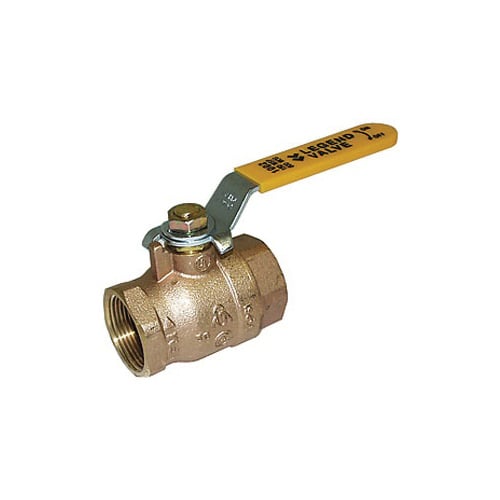

Legend Valve LEG101-067NL T-1002NL Ball Valve 1-1/2 in Nominal

Product Description

The LEGEND VALVE LEG101-067NL is a T-1002NL series ball valve with a lead-free design suitable for potable water installations. It features a bottom-loaded, blow-out proof stem with PTFE packing gland and forged brass packing nut. The valve has durable PTFE seats and a self-cleaning, polished chrome forged brass ball to resist scale build-up.

• Lead free design suitable for all no-lead potable water installations
• Bottom loaded, blow-out proof stem with PTFE packing gland and forged brass packing nut
• Durable PTFE seats
• Self-cleaning forged brass ball is chrome plated, to resist scale build-up

Product Highlights

This ball valve has a MNPT x FNPT end style, a full port, and is rated to 600 psi CWP pressure.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG101-067NL
• Country of Origin: Import

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 3.63 in
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-1002NL
• Top to Inlet Center: 2.72 in
• Trim Material: Forged Brass Stem and PTFE Seat
