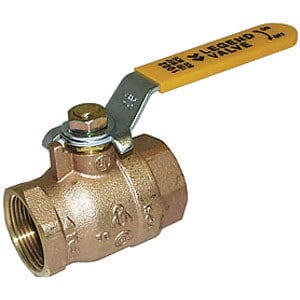

Legend Valve LEG101-065NL T-1002NL Ball Valve 1 in Nominal

Product Description

The LEGEND VALVE LEG101-065NL is a T-1002NL series lead-free ball valve with a 1-inch nominal FNPT end style. It features a polished chrome forged brass ball and a forged brass body. Suitable for no-lead potable water installations, it complies with all lead-free plumbing laws. The valve has a full port and is imported.

• Lead free design suitable for all no-lead potable water installations
• Bottom loaded, blow-out proof stem with PTFE packing gland and forged brass packing nut
• Durable PTFE seats

Product Highlights

This lead-free ball valve is ideal for potable water systems, offering durability and compliance with plumbing standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG101-065NL
• Country of Origin: Import

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 2.88 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-1002NL
• Top to Inlet Center: 2.05 in
• Trim Material: Forged Brass Stem and PTFE Seat
