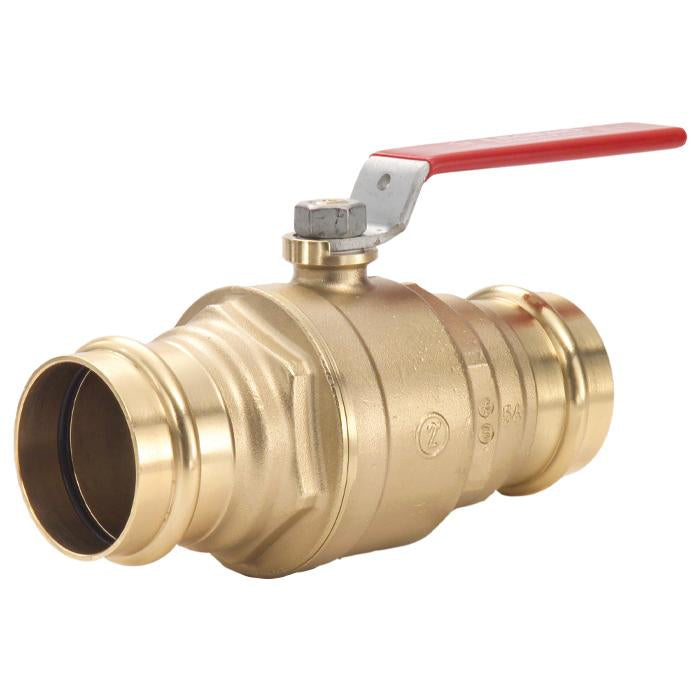

Legend Valve LEG101-010NL 3in Ball Valve

Product Description

The LEGEND VALVE LEG101-010NL is a 3 inch ball valve featuring a straight type design. Constructed with a forged brass body and chrome plated forged brass ball, it ensures durability. Suitable for commercial, plumbing, and potable water systems. It is lead-free and features press x press end connections.

• Large diameter
• Straight type
• Lead-free

Product Highlights

This lead-free ball valve is ideal for plumbing and commercial applications. Its press-type end connections eliminate the need for soldering.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG101-010NL
• Country of Origin: Import

Technical Specifications

• Applicable Standard: ANSI/NSF 61G, MSS SP-110, ISO 9002
• Application: COMMERCIAL, PLUMBING, POTABLE WATER SYSTEM
• Temperature Rating: 230 DEG F
• Handle Nut: DACROMET COATED STEEL WITH RESIN LOCK
• Anti-Friction/Thrust Washer: DYNEON TFM PTFE
• End Adapter/Press Socket: FORGED BRASS
• Body Material: Brass
• Pressure Rating: 400 PSI CWP
• End Connection: PRESS X PRESS
• Handle Material: ASTM A510 UNS G10060 DACROMET COATED STEEL
• O-Ring Seal Material: VITON FLUOROELASTOMER
• End to End Distance: 11.31 INCH
• Actuation Type: LEVER HANDLE
• Seat Material: DYNEON TFM PTFE
• Stem Material: CW510L UNS C28500 CHROME PLATED FORGED BRASS
• Port Type: Full
• Ball Material: Brass
• Brand: LEGENDPRESS[TM], TRADITIONAL
• Lead-Free: LEAD-FREE
• Insertion Depth: 2-1/4 INCH
• Model: P-200NL
• Nominal Size: 3 in
• Domestic/Import: Import
• End Style: Press
• Finish: Polished Chrome
• Inlet to Outlet Length: 11.31 in
• Media: Water
• Series: P-200NL
• Softgoods Material: TFM/PTFE/FKM Fluoroelastomer
• Top to Inlet Center: 4.28 in
• Trim Material: Brass Stem and PTFE Seat
• Material: Brass
• Type: Ball Valves
• MPN: 101-010NL
