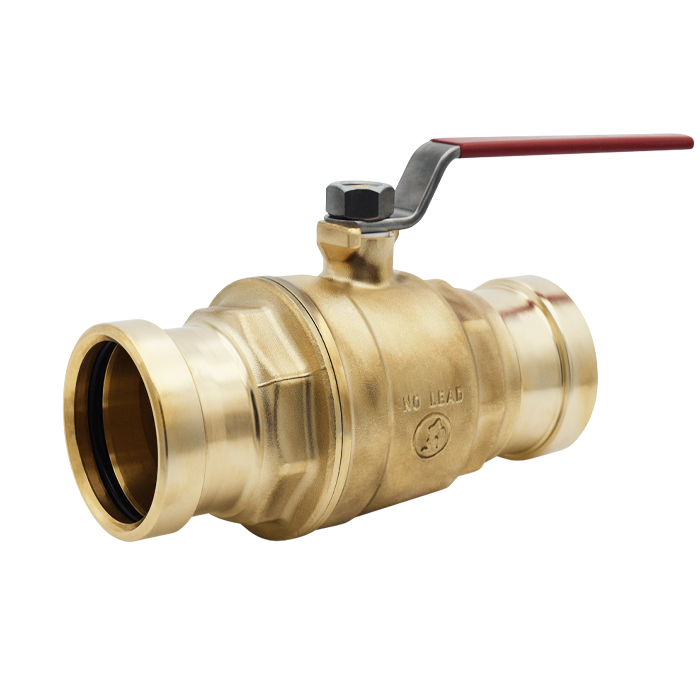

Legend Valve LEG101-009NL P-200NL Series Ball Valve 2-1/2 in Press

Product Description

The Legend Valve LEG101-009NL P-200NL Series ball valve features a 2-1/2 inch nominal press connection and is designed for water media applications. Constructed with a brass body, PTFE seat, and stainless steel stem, this full port valve ensures efficient flow control. It is lead-free and suitable for use up to 230 deg F.

• 2-1/2 in P-200NL legend press lead-free forged brass ball valve
• Full port design for optimal flow
• Lead-free construction compliant with plumbing laws

Product Highlights

This lead-free forged brass ball valve with press-type end connections eliminates the need for soldering and brazing, reducing labor and material costs.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG101-009NL
• Country of Origin: Import

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• Connection Type: Press
• Inlet to Outlet Length: 8.24 in
• Lead-Free/Contains Lead: Lead-Free
• Media: Water
• Nominal Size: 2-1/2 in
• Operator Type: Lever Handle
• Packing Material: Steel Handle Material
• Port Type: Full
• Pressure Rating: 300 psi
• Seal Material: FKM
• Seat Material: PTFE
• Series: P-200NL Series
• Softgoods Material: TFM/PTFE/FKM Fluoroelastomer
• Stem Material: Stainless Steel
• Temperature Rating: 230 deg F
• Top to Inlet Center: 4.04 in
• Actuator Type: Lever Operated
• Dimensions: 12.06 in W x 5.94 in H
• Domestic/Import: Import
• End Style: Press
• Finish: Polished Chrome
• Trim Material: Brass Stem and PTFE Seat
