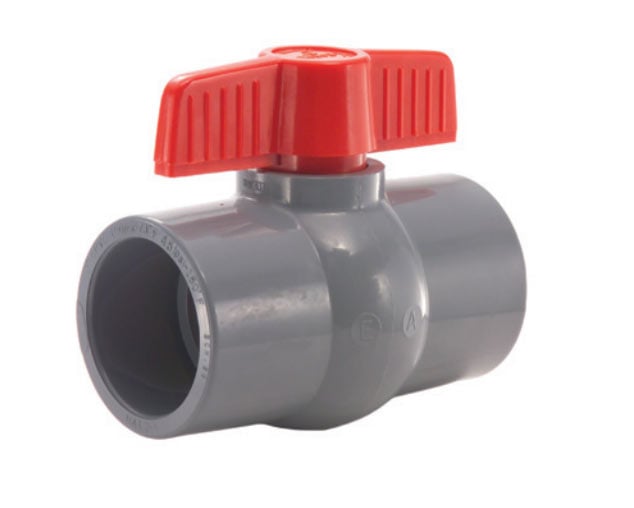

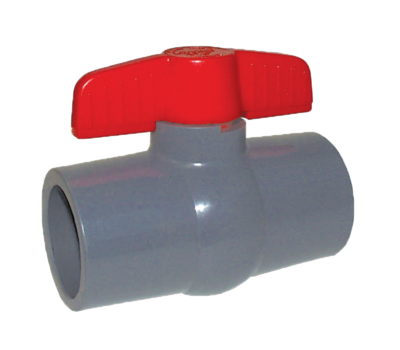

LEGEND VALVE AND FITTING 202-418 2-Inch CPVC Ball Valve

Product Description

The LEGEND VALVE AND FITTING 202-418 is a two-inch CPVC ball valve designed for reliable flow control. It features solvent x solvent connections, making it ideal for Schedule 80 pipe applications. This product is constructed from CPVC with EPDM O-rings and seats, ensuring durability in lead-free systems. The valve comes with an ABS plastic T-handle that allows easy actuation.

• CPVC body, stem, and ball ensure longevity.
• Meets ISO 9002 and NSF standards for safety.
• Operates effectively at pressures up to 150 PSI at 73 degrees Fahrenheit.

Product Highlights

This ball valve is optimal for systems requiring compliance with lead-free regulations and provides a dependable sealing solution.

Product Information

Standard Information

• Brand: LEGEND VALVE AND FITTING
• MPN: 202-418

Technical Specifications

• Model: S-607
• Nominal Size: 2 inches x 2 inches
• Pipe Application: Schedule 80
• Body Material: CPVC
• Ball Material: CPVC
• Stem Material: CPVC
• Seat Material: EPDM
• O-Ring Included: EPDM
• End Connection: Solvent x Solvent
• Actuation Type: T-Handle
• Handle Material: ABS Plastic
• Temperature Rating: 180 degrees Fahrenheit
• Pressure Rating: 150 PSI at 73 degrees Fahrenheit
• End to End Distance: 5.79 inches
• Lead-Free: Yes
• Color: Gray
