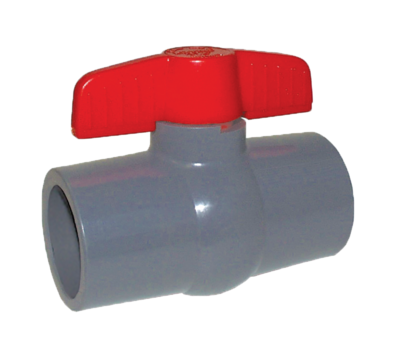

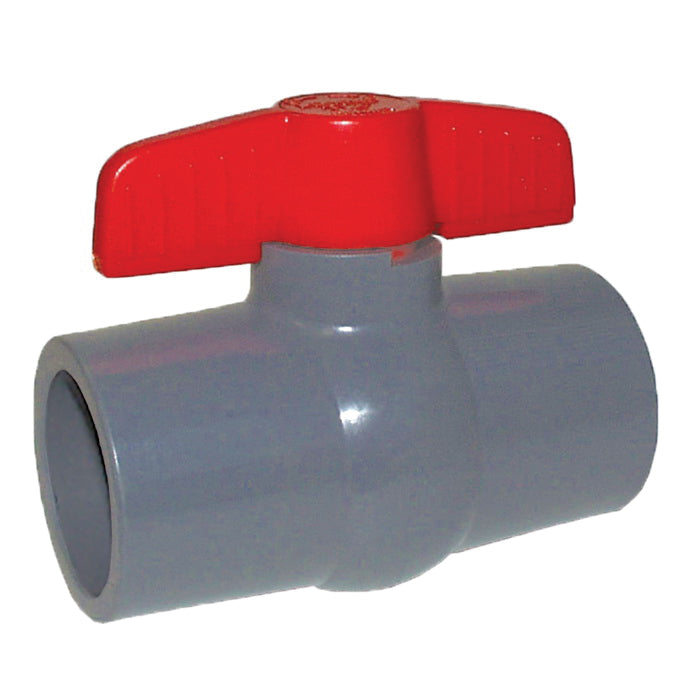

Legend Valve and Fitting 202-417 1-1/2 in. Slip CPVC T-Handle Ball Valve

Product Description

The Legend Valve and Fitting 202-417 is a 1-1/2 inch ball valve made from CPVC material. It is part of the S-607 Series and has a full port ball design. This valve includes a solvent x solvent connection for installation on schedule 80 CPVC pipes. The valve also features PTFE seats and EPDM O-rings for reliability.

• CPVC construction
• Solvent weld connection
• T-Handle for easy operation

Product Highlights

This valve is suitable for many plumbing applications and provides a secure seal in high-pressure environments.

Product Information

Standard Information

• Series: S-607 Series
• Nominal Size: 1-1/2 in

Technical Specifications

• Body Material: CPVC
• Stem Material: CPVC
• Ball Material: CPVC
• Seat Material: PTFE
• Handle Material: ABS Plastic
• Connection Type: Solvent Weld
• Pressure Rating: 150 psi
• Temperature Rating: 180 Degrees F
• End Connection: Solvent x Solvent
• Actuation Type: T-Handle
• Application: Schedule 80 Pipe
• Dimensions: 4.47 in H x 2.95 in W
• Inlet to Outlet Length: 5.12 in
