Legend Valve and Fitting 202-415 1-Inch CPVC Schedule 80 Ball Valve

Product Description

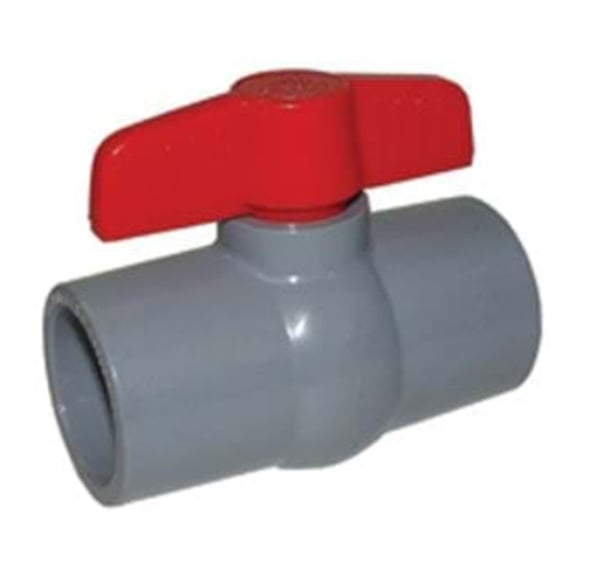

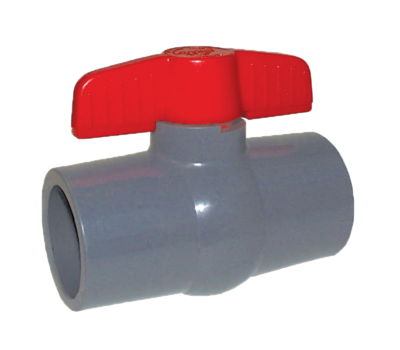

The Legend Valve and Fitting 202-415 is a one-inch CPVC ball valve suitable for schedule 80 CPVC pipe. Made from CPVC resin, this valve has a full port ball design with solvent x solvent connections. It features PTFE seats and EPDM o-rings. The one-piece molded body design ensures durability. It is designed to handle a maximum temperature of one hundred eighty degrees Fahrenheit.

• Features solvent x solvent connections
• Constructed with corrosion-proof CPVC resin
• Meets the pressure rating of one hundred fifty PSI at seventy-three degrees Fahrenheit

Product Highlights

This valve is made for reliable operation in various plumbing applications.

Product Information

Standard Information

• Brand: Legend
• Model: S-607

Technical Specifications

• MPN: 202-415
• Body Material: CPVC
• Handle Material: ABS Plastic
• Ball Material: CPVC
• Stem Material: CPVC
• Seat Material: EPDM
• End Connection: Solvent x Solvent
• Actuation Type: T-Handle
• Pressure Rating: 150 PSI at 73 degrees F
• Temperature Rating: 180 degrees F
• End to End Distance: 4.17 inches
• Lead-Free: Lead-Free
• Configuration: Solvent x Solvent; Full Port Ball Design
