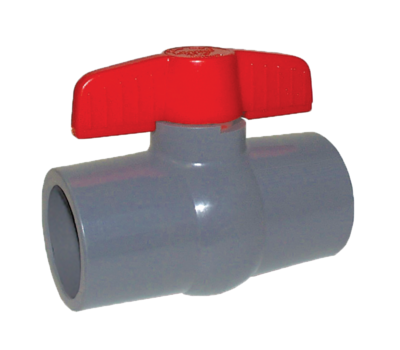

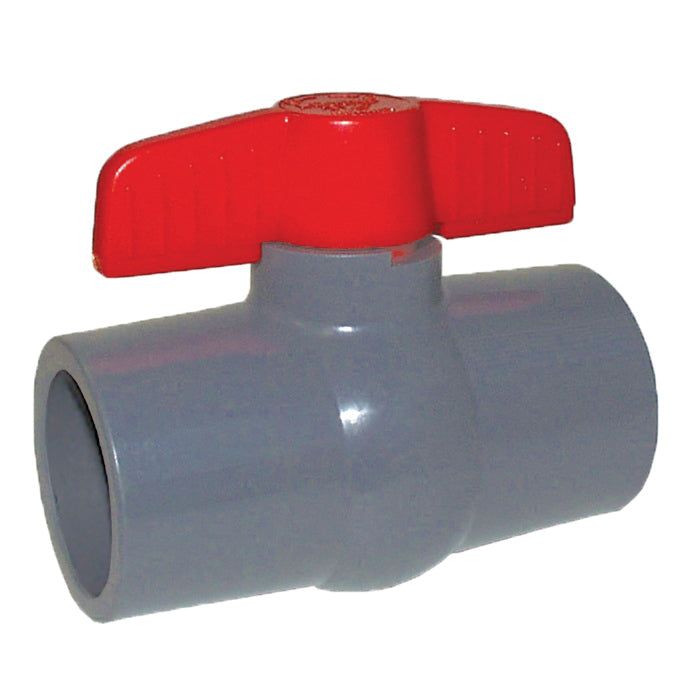

Legend Valve and Fitting 202-414 3/4 Inch CPVC Compact Ball Valve

Product Description

The Legend Valve and Fitting 202-414 is a 3/4-inch CPVC compact ball valve designed for water media applications. It features a solvent weld connection for a secure fit. The valve has a pressure rating of 150 psi CWP at seventy-three degrees Fahrenheit and can withstand temperatures up to one hundred eighty degrees Fahrenheit. This valve includes PTFE seats, EPDM seals, and a durable ABS handle for manual operation.

• Constructed from CPVC material
• Includes PTFE seats and EPDM seals
• Designed for solvent weld connections

Product Highlights

This valve is ideal for plumbing and HVAC applications. It provides reliable performance in water transport systems.

Product Information

Standard Information

• Brand Name: Legend Valve and Fitting, Inc.
• Manufacturer Part Number: 202-414

Technical Specifications

• Series: S-607 Series
• Nominal Size: 3/4 inches
• Connection Type: Solvent Weld
• Pressure Rating: 150 psi CWP
• Temperature Rating: 180 degrees Fahrenheit
• Body Material: CPVC
• Stem Material: CPVC
• Seat Material: PTFE Elastomer
• Seal Material: EPDM Elastomer
• Handle Material: ABS Plastic
• Media: Water
• Inlet to Outlet Length: 3.78 inches
• End to End Distance: 3.79 inches
• Handle Type: Handle
• Actuation Type: T-Handle
• Applicable Standard: ISO 9002, NSF
• Pipe Application: Schedule 80
• O-Ring Inclusions/Features: EPDM
• Ball Material: CPVC
• Lead-Free: Lead-Free
• Color: Gray
• Model: S-607
• Material Standard: ASTM D1784
• Top to Inlet Center: 2.13 inches
• Dimensions: 3.09 inches H x 3.78 inches W
