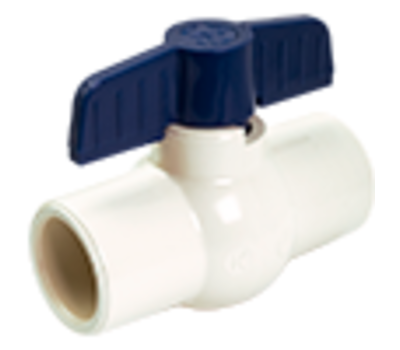

LEGEND VALVE AND FITTING 202-406 CPVC Compact Ball Valve, 1-1/4 Inch, Solvent x Solvent

Product Description

The LEGEND VALVE AND FITTING 202-406 is a CPVC compact ball valve suitable for plumbing, industrial, commercial, and hydronic applications. It is made from ASTM D1784 CPVC for the body, stem, and ball, ensuring durability and resistance to corrosion. This valve has a solvent x solvent end connection and utilizes a T-handle actuator for ease of use. The full port design ensures maximum flow with minimal pressure drop.

• Easy operation with T-handle actuator.
• Durable construction with ASTM D1784 CPVC.
• Designed for installation on copper-tube-size CPVC tubing.

Product Highlights

Product Information

Standard Information

• Brand: LEGEND VALVE AND FITTING
• MPN: 202-406

Technical Specifications

• Actuation Type: T-Handle
• Application: Plumbing, Industrial, Commercial, Hydronics
• Ball Material: CPVC
• Body Material: CPVC
• End Connection: Solvent x Solvent
• End to End Distance: 4.19 inches
• Handle Material: Impact Grade CPVC
• Inlet to Outlet Length: 4.19 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 150 psi
• Seat Material: Dupont PTFE
• Stem Material: CPVC
• Temperature Rating: 180 degrees F
• Type: Ball Valve
• Port Type: Full
• Media: Oil/Water
• Color: Bone
• Series: S-605
• Softgoods Material: EPDM
