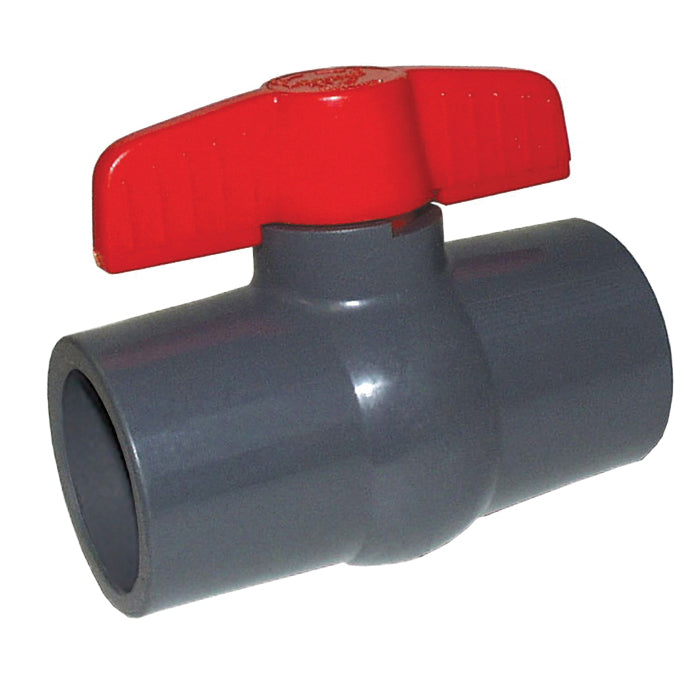

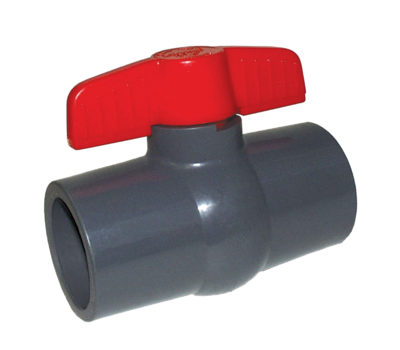

Legend Valve and Fitting 201-437 1-1/2 in. PVC Ball Valve

Product Description

The Legend Valve and Fitting 201-437 is a 1-1/2 inch ball valve designed for use with schedule 40 and 80 PVC pipe. This valve is made from UPVC and features PTFE seats along with an EPDM stem O-ring. It incorporates a one-piece ball-stem design and a molded body, making it reliable for various applications. It is suitable for plumbing, industrial, commercial, and hydronics systems.

• End connections: Solvent x Solvent
• Pressure rating: 150 psi
• Temperature rating: 140°F

Product Highlights

This valve is designed for effective control of water flow in multiple settings. It is NSF certified, ensuring safety and compliance for drinking water systems.

Product Information

Standard Information

• Brand: Legend Valve and Fitting
• MPN: 201-437

Technical Specifications

• Series: S-602 Series
• Nominal Size: 1-1/2 in
• Body Material: UPVC
• Ball Material: UPVC
• Seat Material: PTFE
• Stem Material: UPVC
• Handle Material: ABS
• Stem O-Ring Seal Material: EPDM
• Valve Type: Ball Valve
• Inlet to Outlet Length: 5.12 in
• Height: 4.47 in
• Width: 2.95 in
• Weight: 1.5 lb
