Legend Valve and Fitting 201-436 1-1/4 Inch PVC Ball Valve

Product Description

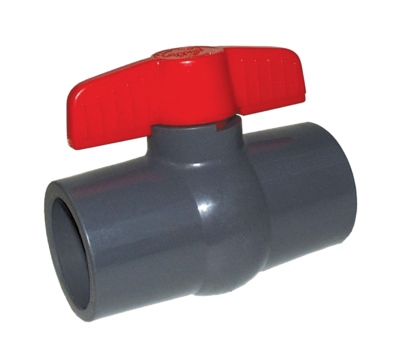

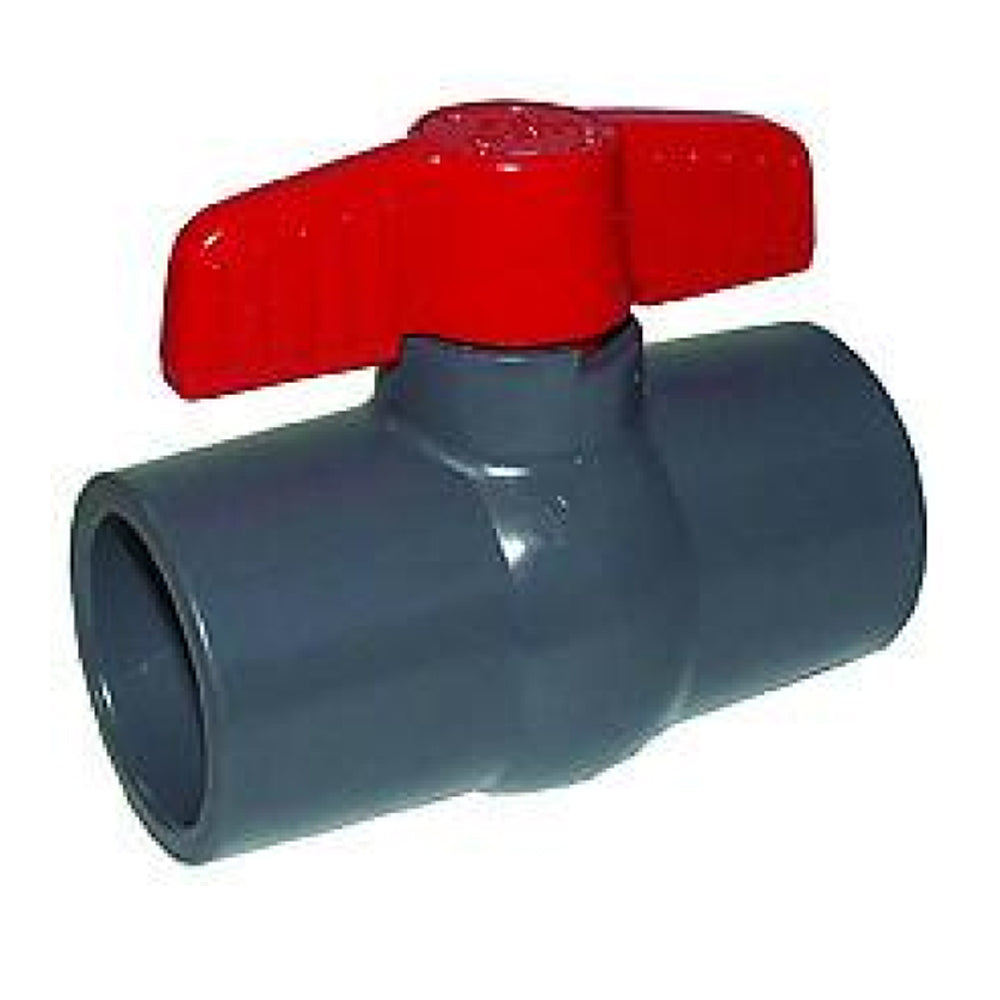

The Legend Valve and Fitting 201-436 is a 1-1/4 inch PVC ball valve suitable for schedule 40 or schedule 80 PVC pipe. The valve is constructed with a durable PVC body featuring a UPVC ball and stem, along with PTFE seats for enhanced performance. It includes a T-handle actuator that allows for manual operation, making it easy to use in various applications.

• Nominal size: 1-1/4 inch
• Solvent x solvent connection type
• Maximum pressure rating of 150 psi at 73°F

Product Highlights

This ball valve is designed for potable water systems and other pipelines requiring high impact resistance. It is ideal for use in plumbing systems and irrigation.

Product Information

Standard Information

• Brand: Legend Valve and Fitting
• MPN: 201-436

Technical Specifications

• Product Type: Ball Valve
• Series: S-602
• End Style: Solvent
• Pressure Rating: 150 psi CWP
• Temperature Rating: 140°F
• Actuator Type: T-Handle
• Body Material: PVC
• Ball Material: UPVC
• Trim Material: UPVC Stem and PTFE Seat
• Inlet to Outlet Length: 4-1/4 inches
• Color: Gray
• Configuration: Solvent x Solvent
• Weight Each: 4.1 lb
• Each Dimension: 4.1 x 4.65 x 2.95 inches
• Case Dimension: 17.7 x 24.3 x 15.1 inches
• Case Quantity: 100 Each
• Domestic/Import: Import
