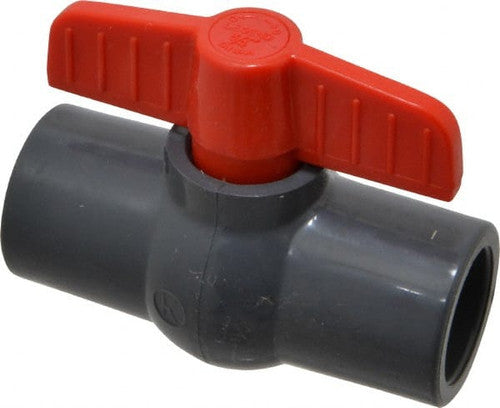

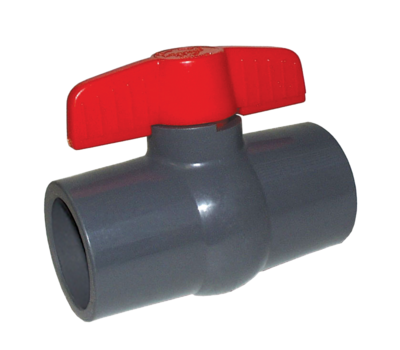

Legend Valve and Fitting 201-434 3/4-Inch PVC Compact Ball Valve

Product Description

The Legend Valve and Fitting 201-434 is a 3/4-inch compact ball valve designed for efficient fluid control in plumbing systems. This valve is made with a durable UPVC body and features a full port design, which promotes maximum flow rate through the valve. It is suitable for installation on Schedule 40 and 80 PVC pipes and provides solvent x solvent end connections for a secure and streamlined inline flow.

• Compact size for tight spaces
• Full port design for higher flow rates
• Compatible with PVC pipe installations

Product Highlights

This ball valve is ideal for use in both residential and commercial plumbing projects and is designed to handle media such as oil and water.

Product Information

Standard Information

• Brand: Legend
• Manufacturer: Legend

Technical Specifications

• MPN: 201-434
• Valve Type: Miniature Ball Valve
• Nominal Size: 3/4 inches
• End Connection: Solvent x Solvent
• Port Type: Full
• Handle Type: Tee
• Body Material: UPVC
• Seal Material: EPDM
• Seat Material: PTFE
• Handle Material: ABS Plastic
• Temperature Rating: 140 degrees F
• Pressure Rating: 150 PSI CWP at 73 degrees F
• Actuation Type: T-Handle
• Ball Material: UPVC
• Stem Material: UPVC
• Inlet to Outlet Length: 3.8 inches
• Dimensions: 3.13 inches height
• Media: Oil/Water
• Model: S-602
• Applicable Standard: NSF, ISO 9002
