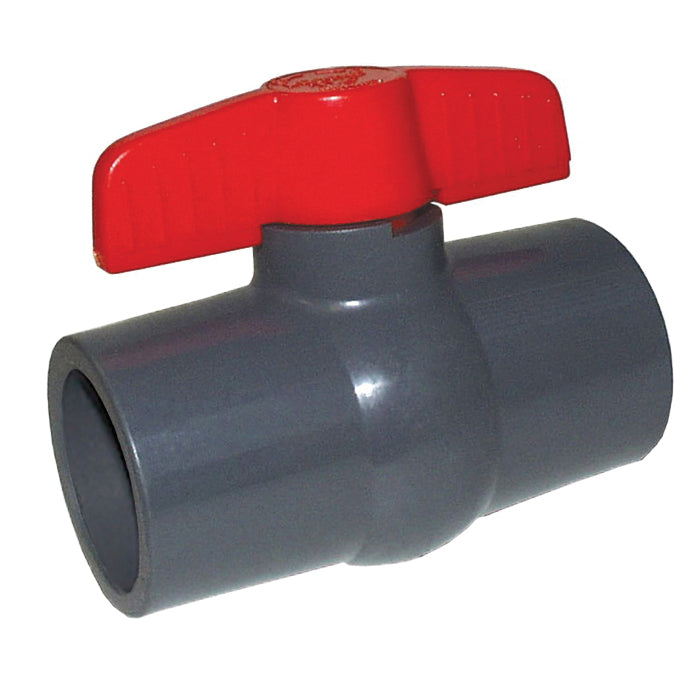

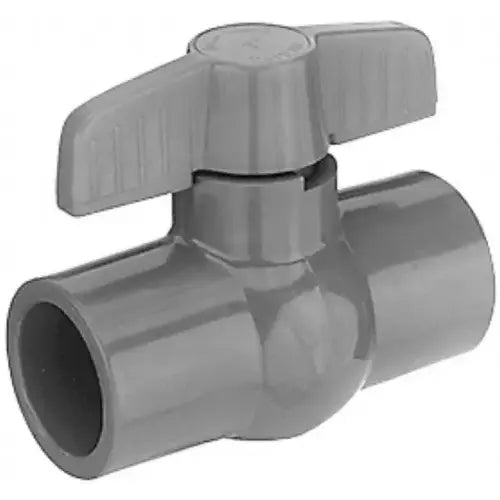

Legend Valve and Fitting 201-433 Ball Valve 1/2 in UPVC

Product Description

The Legend Valve and Fitting 201-433 is a half-inch ball valve made of UPVC. This valve features a UPVC body, UPVC ball, and stem, along with PTFE seats. It is designed for solvent x solvent connections and is compatible with schedule 40 and 80 PVC pipes. The valve operates well under a pressure rating of 150 psi at seventy-three degrees Fahrenheit, with a maximum temperature limit of one hundred forty degrees Fahrenheit. This product is primarily suited for water media applications.

• Suitable for solvent x solvent connections
• Compatible with schedule 40/80 PVC pipe
• Rated to 150 psi at 73°F

Product Highlights

This valve ensures reliable performance in plumbing applications, providing durability and efficiency.

Product Information

Standard Information

• Brand: Legend Valve and Fitting
• MPN: 201-433

Technical Specifications

• Series: S-602 Series
• Nominal Size: 1/2 in
• End Connection: Solvent x Solvent
• Body Material: UPVC
• Ball Material: UPVC
• Stem Material: UPVC
• Seat Material: PTFE
• Seal Material: EPDM
• Pressure Rating: 150 psi
• Temperature Rating: 140 deg F
• Handle Material: ABS
• Actuation Type: T-HANDLE
• Applicable Standard: NSF, ISO 9002
• Inlet to Outlet Length: 3.27 in
• End to End Distance: 3.25 inches
• Handle Type: Tee
• Port Type: Full
• Schedule: 80
