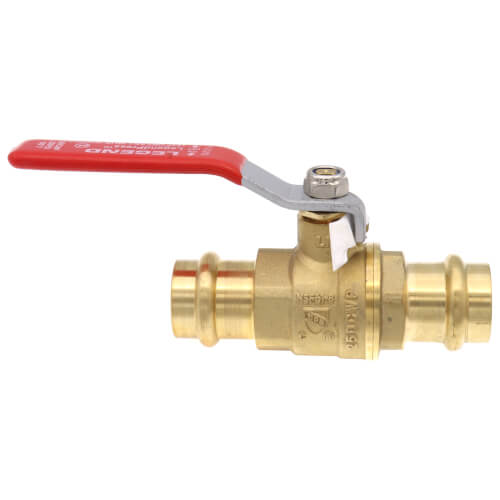

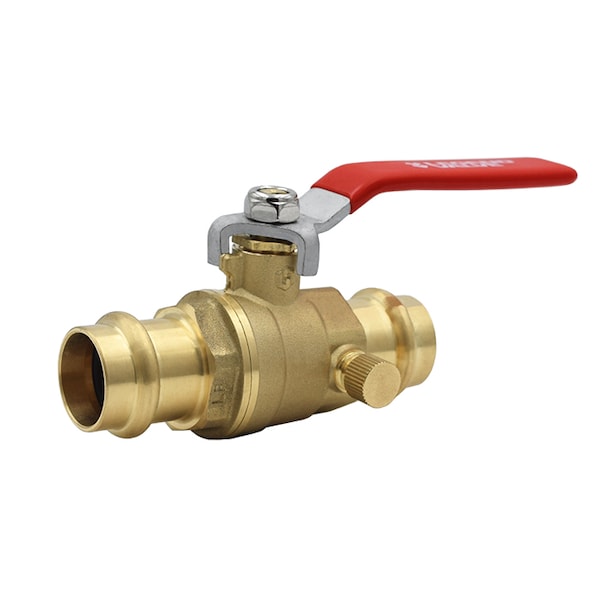

Legend Valve And Fitting 101-214NL P-202NL Press Forged Brass Full Port Ball Valve w/ Drain 3/4 inches

Product Description

The LEGEND VALVE AND FITTING 101-214NL P-202NL is a lead-free forged brass full port ball valve with a 3/4" press connection and drain, suitable for potable water installations. It features press-to-connect end connections designed for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing. The waste drain allows the line to be drained for maintenance or to prevent freeze-up.

• 3/4" Press x Press Connection
• Lead-free construction compliant with national plumbing law
• Eliminates soldering, reducing labor and material costs

Product Highlights

This forged brass ball valve features press-to-connect end connections and a waste drain for easy maintenance and freeze prevention.

Product Information

Standard Information

• Brand: LEGEND VALVE AND FITTING
• Manufacturer Part Number: 101-214NL
• Country of Origin: China

Technical Specifications

• Size: 3/4"
• Material: Forged Brass
• Handle Style: Lever
• Valve Construction: 1 piece
• Lead Free: Yes
• Connection Type: Press x Press
• Max Pressure (PSI): 250
• Connection Method: Press
• Features: Bleeder
• Port Type: Full Port
• MPN: 101-214NL
• Type: Full Port Ball Valve w/ Drain
• Brand: Legend
• Model: 101-214NL
• Manufacturer Part Number: 101-214NL
• Country of Origin: China
• Pipe Size: 3/4 in
• Standards: NSF / ANSI 61
