Legend Valve 807-073 Heat Exchanger 150000 Btu/hr 30 Plate 1 in MNPT 5 x 12 in

Product Description

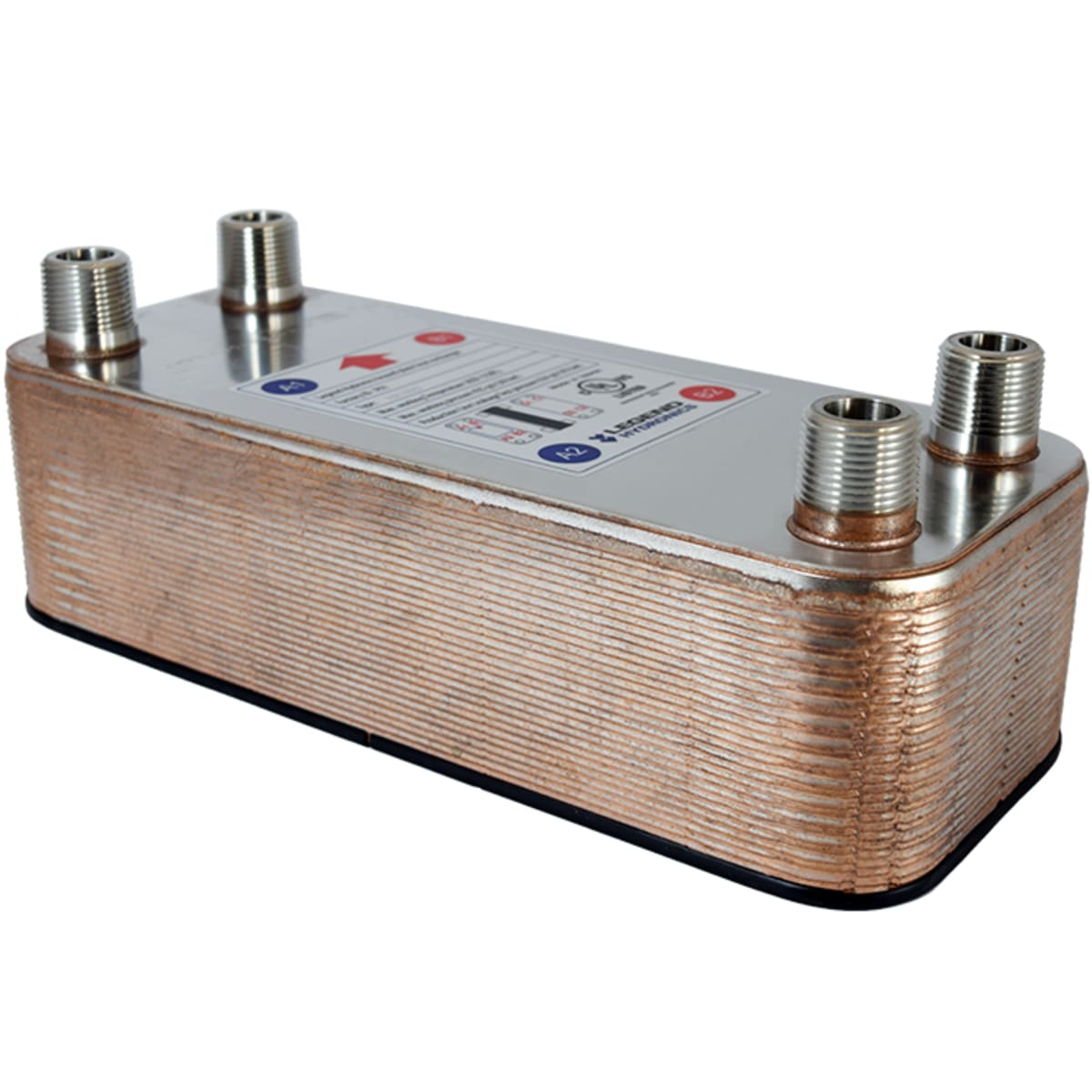

The LEGEND VALVE 807-073 Heat Exchanger, Series HX-300, is a flat plate unit constructed from stainless steel. It features 30 plates and a 1 in MNPT connection, with dimensions of 5 x 12 inches. Designed for efficient thermal transfer, it offers a heating capacity of 150000 Btu/hr, operates up to 302 deg F, and withstands pressures up to 435 psi, making it suitable for various heating and fluid transfer applications.

• High thermal efficiency for effective heat transfer.
• High corrosion resistance due to stainless steel construction.
• Brazed plate design with acid-resistant stainless steel plates.

Product Highlights

Durable brazed plate heat exchanger with acid-resistant stainless steel plates and 1 in MNPT connections.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 807-073
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Series: HX-300
• Material: Stainless Steel
• Connection Type: 1 in MNPT
• Pressure Rating: 435 psi
• Heating Capacity: 150000 Btu/hr
• Number of Plates: 30
• Temperature Rating: 302 deg F
• Type: Flat Plate
• Flow Rate: 12.4 gpm
