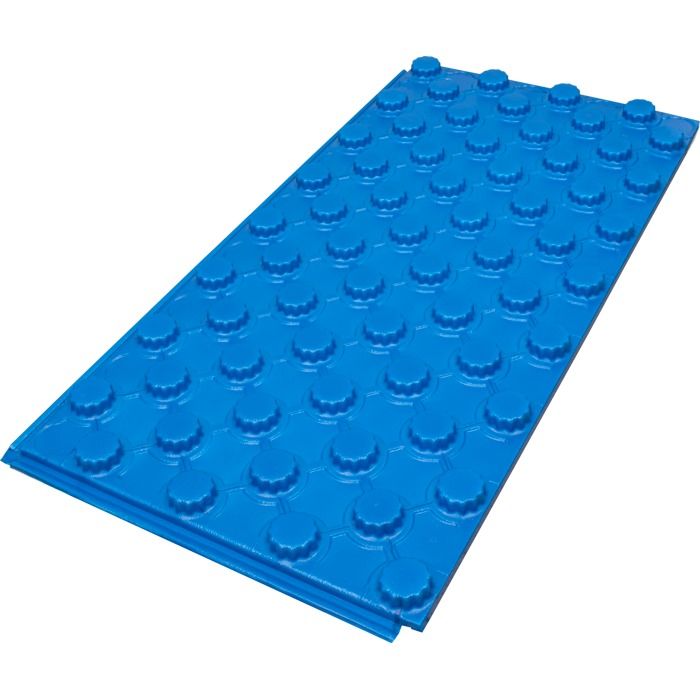

Legend Valve 800-QT200 Quicktherm Radiant Tube Installation Panel

Product Description

The Legend Valve 800-QT200 Quicktherm Radiant Tube Installation Panel is a practical solution for the installation of radiant tubing. This panel is constructed from durable polystyrene, ensuring a long-lasting product. It measures twenty-five inches in width, forty-nine inches in height, and two point eight inches in depth. Designed for efficiency, this panel allows for faster installations compared to traditional methods.

• Installs seventy-five percent faster than conventional methods
• Eliminates the need for bending or crawling during installation
• Removes the requirement for stapling and cable ties

Product Highlights

The Quicktherm panel simplifies radiant tubing installation and improves worker comfort.

Product Information

Standard Information

• Brand: Legend Valve
• Model: QT200

Technical Specifications

• Dimensions: twenty-five inches wide x forty-nine inches high x two point eight inches deep
• Material: Polystyrene
• Nominal Size: two inches thick
• Pressure Rating: Greater than thirty-six lb/sq-in
• R-Value: R10
• Density: two lb/cu-ft
• Domestic/Import: Domestic
• Thermal Resistance: ten degrees Fahrenheit - square-feet - hour/Btu
• Water Absorption Rating: four percent by volume
